Design, installation, programming

Loxone building automation

Smart home and building automation from a single source. Lighting, heating, heat pump control and security in one system, with completed reference projects.

Request a quote
No monthly feeWorks without internetCan be retrofittedExpandable at any time

Loxone building automation from a single source

Our company has years of experience in the design, installation and maintenance of Loxone smart home systems. Our team of electricians, IT specialists and mechatronics engineers works to make your home, office or industrial facility as comfortable and efficient as it can be.

  • Design and installation of Loxone systems
  • Extension and upgrade of existing Loxone systems
  • Maintenance, repair and optimisation
  • Smart lighting, heating and cooling control
  • Security systems and access control
  • Remote monitoring and remote control
From design to handover
Survey, installation and programming from one team, with no delays between trades.
Our own team of specialists
An electrician, an IT specialist and a mechatronics engineer work on every project.
System takeover
We take over, program and extend Loxone systems installed by others too.
Open integrations
KNX, DALI, Modbus and 1-Wire support, so you are never locked into a closed system.

What we automate with a Loxone system

From lighting to energy management, every area in one system, controlled from a single app.

Lighting

Presence- and daylight-based light control with mood scenes.

Heating and cooling

Room-by-room control with underfloor heating and self-learning algorithms.

Heat pump

Operation optimised by weather and presence, combined with solar power if you wish.

Shading

Automatic blind and shutter control following the position of the sun.

Security

Alarm, smoke detection and presence simulation in one system.

Intercom and access control

Video intercom and keyless entry from your smartphone.

Multiroom audio

Music in every room, with wake-up and doorbell sounds.

Energy management

Solar power, consumption metering and smart energy use.

How a Loxone system is put together

A Loxone smart home is one coherent system: wired Tree devices, wireless Air devices, extension modules, audio and access control all connect to the central Miniserver. Everything comes together in one place, which is why the functions genuinely work together.

Click the elements of the map to see which devices belong to them.

The Miniserver is the brain of the system

All control comes together in a single hub. The Miniserver makes its decisions locally, without the cloud, so the smart home works even without an internet connection.

Miniserver

The hub of a complete smart home for larger houses, with Tree and Link bus connections and access from the app or the web.

Miniserver Compact

A compact hub for flats and smaller houses, with built-in Tree and Air connectivity.

Miniserver Go

A wireless hub for retrofitting. It builds the system from Air wireless devices, without breaking into walls.

Tree devices

Tree is the wired bus developed by Loxone. Data and power run on a single green cable and the devices can be chained freely, so the wiring is considerably shorter than with conventional solutions.

Touch Pure Flex

A glass-fronted wall control for lighting, shading and music, with customisable buttons.

Touch Tree

A five-button touch switch with a built-in temperature and humidity sensor.

Presence Sensor Tree

It watches presence and light level, and forms the basis of lighting and heating automation.

Room Comfort Sensor Tree

It measures temperature and humidity for precise room climate control.

LED Spot RGBW Tree

A colour ceiling spotlight with direct bus control, without a separate power supply or dimmer.

RGBW 24V Dimmer Tree

Brightness and colour control for LED strips and 24 V light sources.

Valve Actuator Tree

Precise control of heating circuit valves for individual room control.

Touch Surface Tree

A hidden control built in under a furniture panel or a stone surface, sensing the touch through the material.

Nano 2 Relay Tree

A miniature two-relay module for the back box, for local switching tasks.

LED Ceiling Light Tree

A complete smart luminaire with colour and white light, connected directly to Tree.

Air devices

Air is the encrypted wireless technology of Loxone. It builds a smart home even where chasing or breaking into walls is not an option, and the devices also relay the signal to each other.

Air Base Extension

The wireless interface for the Miniserver; this is what brings Air devices into the system.

Smoke Detector Air

It watches for smoke and heat. On an alarm the whole house responds: the lights come on and the blinds go up.

Water Sensor Air

It reports a leak near the washing machine, the sink or the boiler, before serious damage is done.

Door and Window Contact Air

Opening detection for the alarm, and with a window open the heating switches off too.

Valve Actuator Air

Wireless control of radiator valves for retrofitted heating control.

Smart Socket Air

A smart socket with switching and consumption metering.

Nano IO Air

A hidden module in the back box that makes existing switches and lights smart.

Remote Air

A handheld remote for starting favourite scenes and functions quickly.

Touch Pure Flex Air

A battery-powered glass wall control for places the cable does not reach.

Weather Station Air

It measures wind, rain, temperature and light level for the shading automation.

Siren Air

An outdoor siren with light and sound signalling for the alarm system.

Extension modules

The extensions chained onto the Link bus provide the inputs and outputs of the system. Only as many modules go into the cabinet as the house needs, and the system can be extended later.

Extension

A universal extension with digital and analogue inputs and outputs for general tasks.

Relay Extension

Fourteen relays for switching larger loads, pumps and heating circuits.

Dimmer Extension

Brightness control for conventional 230 V light sources.

DI Extension

Twenty digital inputs for switches, push buttons and sensors.

AI and AO Extension

Reading and outputting analogue signals, for valves, sensors and ventilation for example.

Modbus Extension

Connecting heat pumps, inverters and energy meters over the Modbus protocol.

RS485 Extension

Serial communication with external systems, ventilation units for example.

DMX Extension

Professional light control for DMX-based luminaires and LED controllers.

DALI Extension

Connecting DALI-controlled luminaires and ballasts.

1-Wire Extension

Support for digital temperature sensors and iButton readers.

KNX Extension

Linking existing KNX systems with the Loxone world.

Multiroom audio

Music in every room, from a single system. Audio is not a separate island: the doorbell, the alarm and the wake-up sounds all play through it.

Audioserver

The music hub. Streaming services, internet radio and your own music library, managed zone by zone.

Stereo Extension

Additional stereo zones for the Audioserver, as the house requires.

Built-in speakers

Discreet ceiling speakers that blend almost invisibly into the interior.

Access control and intercom

The entrance is part of the system too. The doorbell sounds through the speakers of the house, and the gate can be opened from the app or with a code.

Intercom

A video intercom with a wide-angle camera; the call can be answered from the app anywhere.

NFC Code Touch

Entry with a numeric code or an NFC key, without conventional keys.

Lock and gate control

Opening electric locks, garage doors and barriers from the system, with logged entries.

NFC Key Fob

An NFC key fob for the code reader, with permissions managed from the app.

Request a quote

Loxone Miniserver: the central controller of an intelligent building

The brain of the smart homeThe Miniserver is the central unit of the whole building automation system: it coordinates lighting, heating, shading and security.
Stable, fast and cloud-independentThe control runs locally, on your own network, so there is no lag and it works without an internet connection. There is no monthly fee and no compulsory cloud subscription.
From a family house to an industrial hallA scalable system able to control every function of a flat, an office or an industrial facility.
Easy extension and integrationWith extension modules and open protocols (KNX, DALI, Modbus, 1-Wire) it can be fitted to existing systems as well.

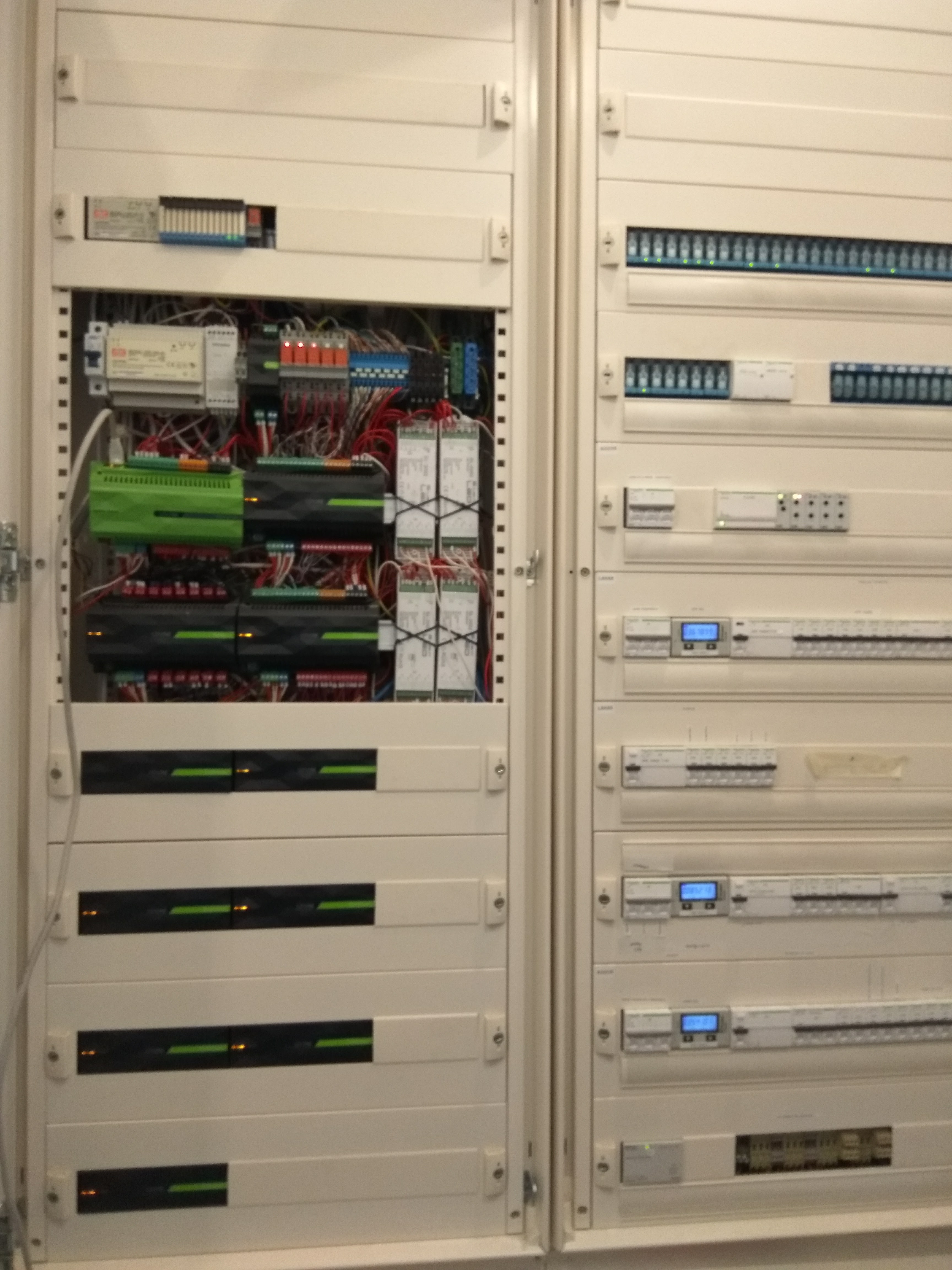

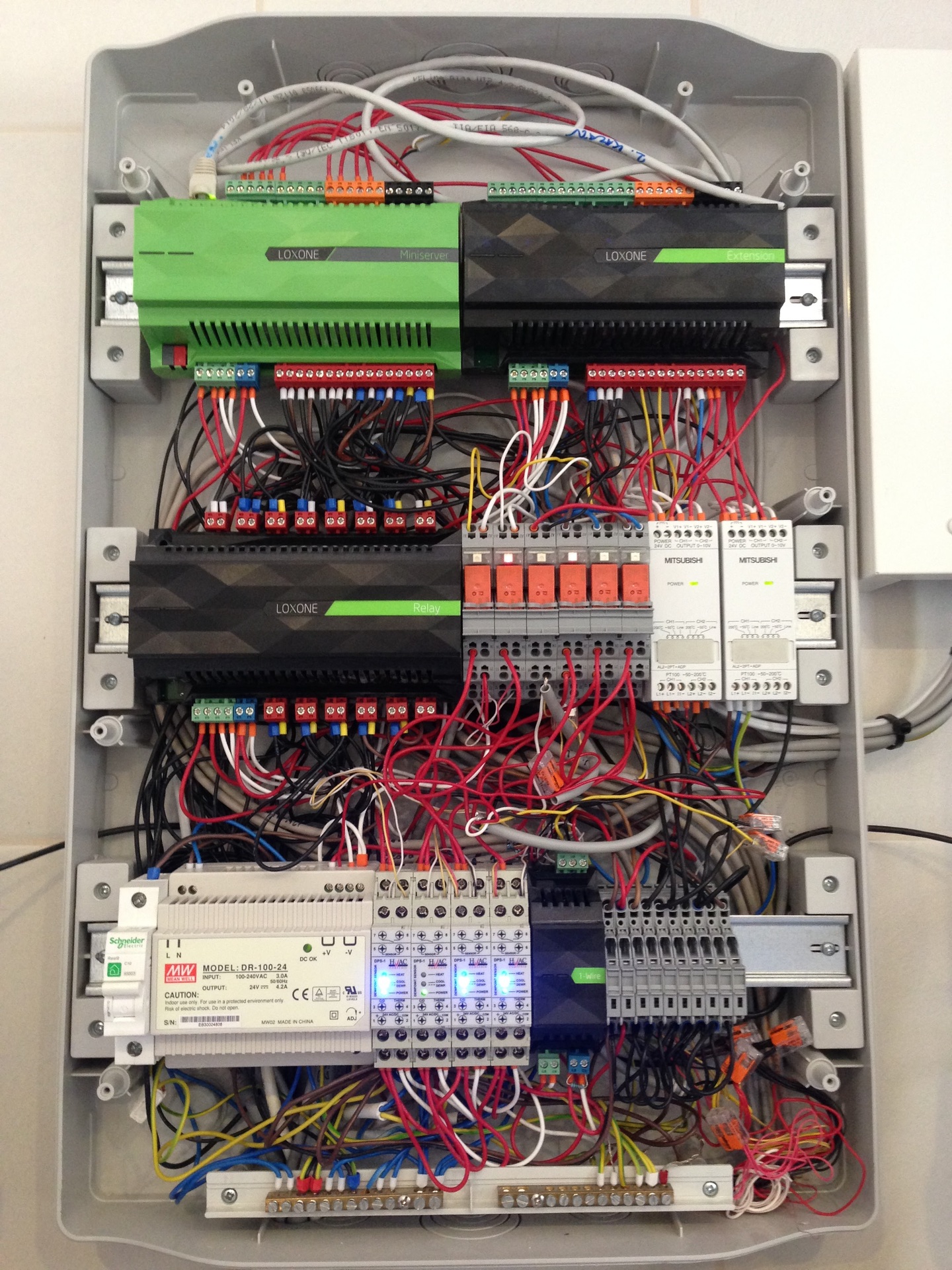

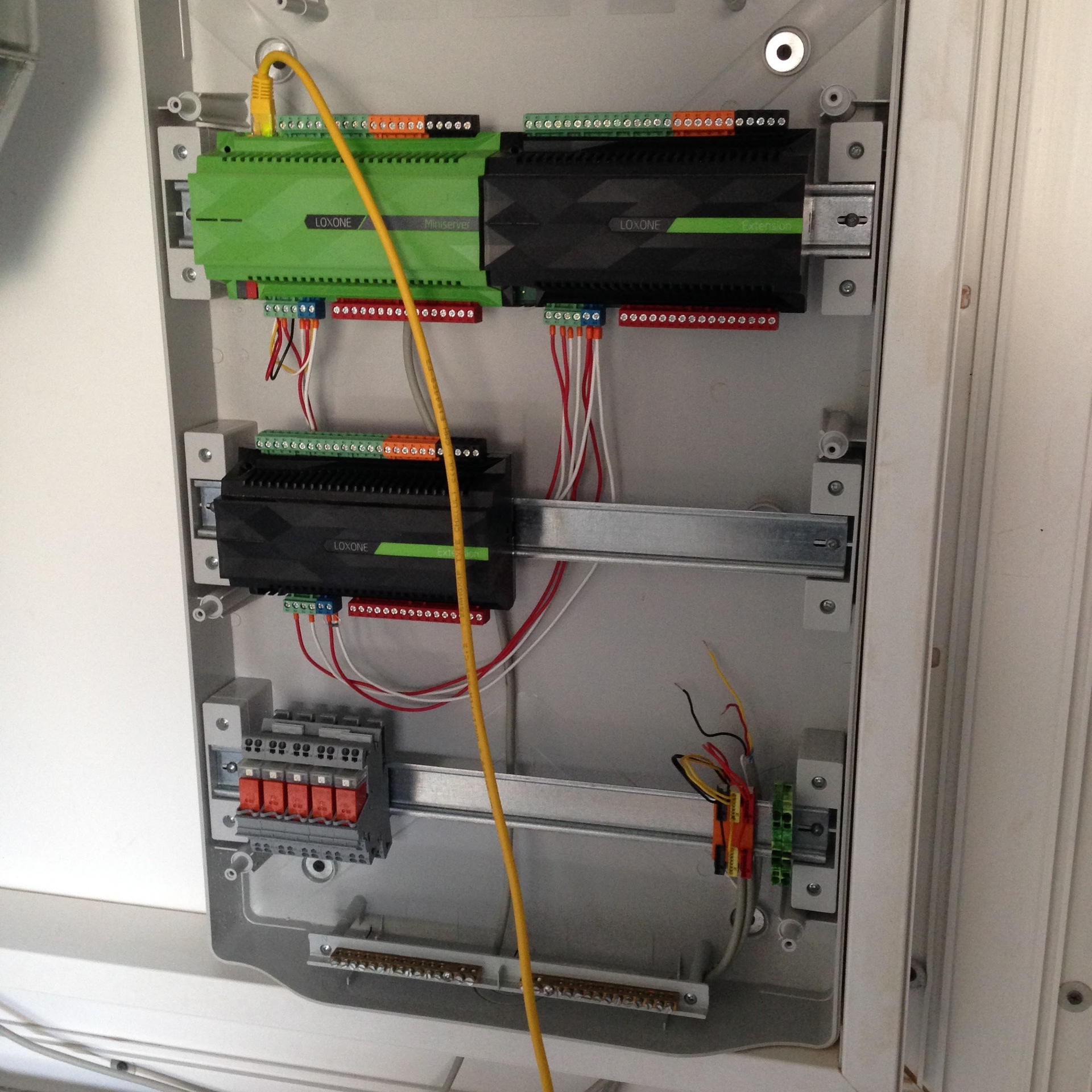

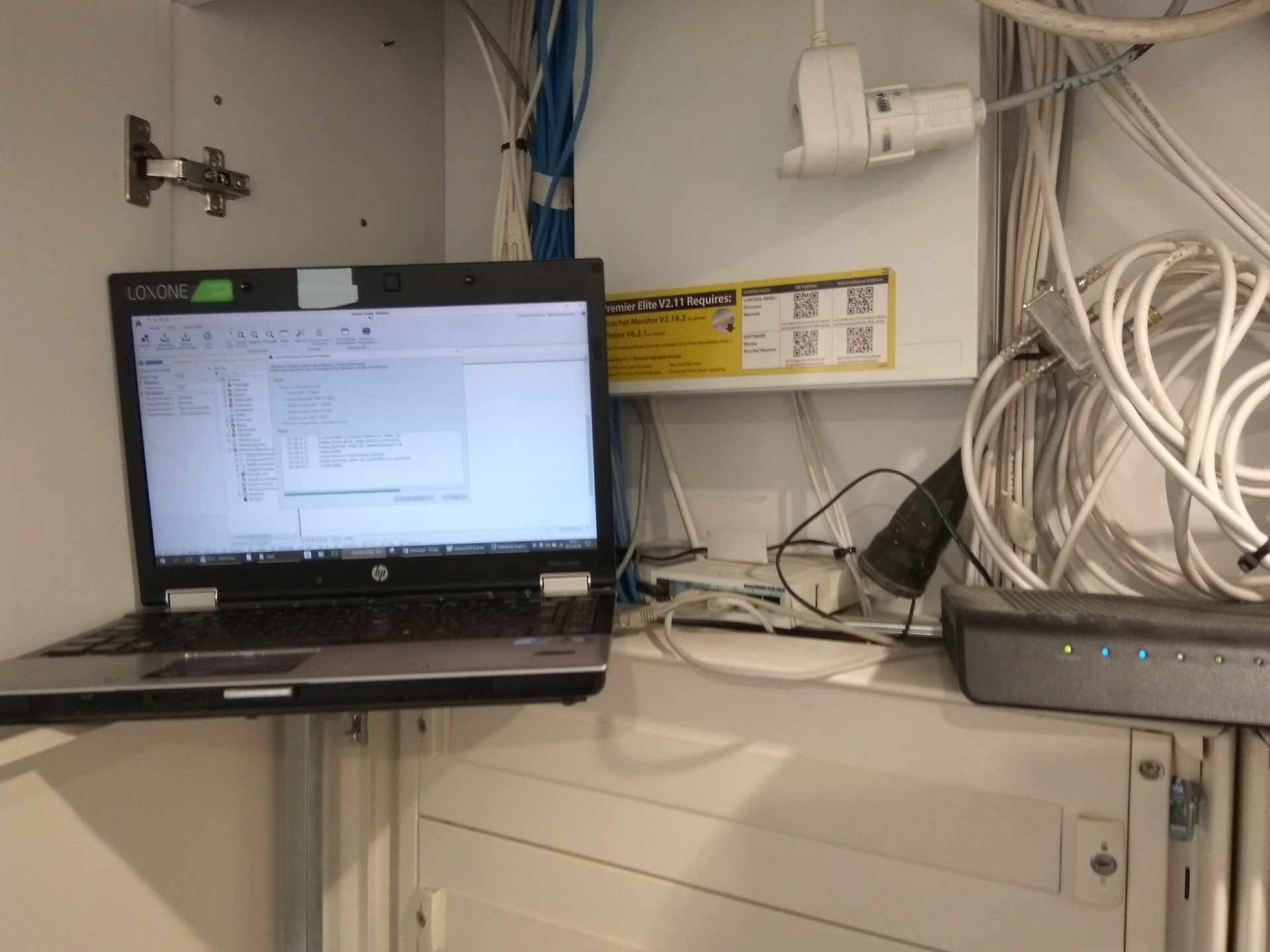

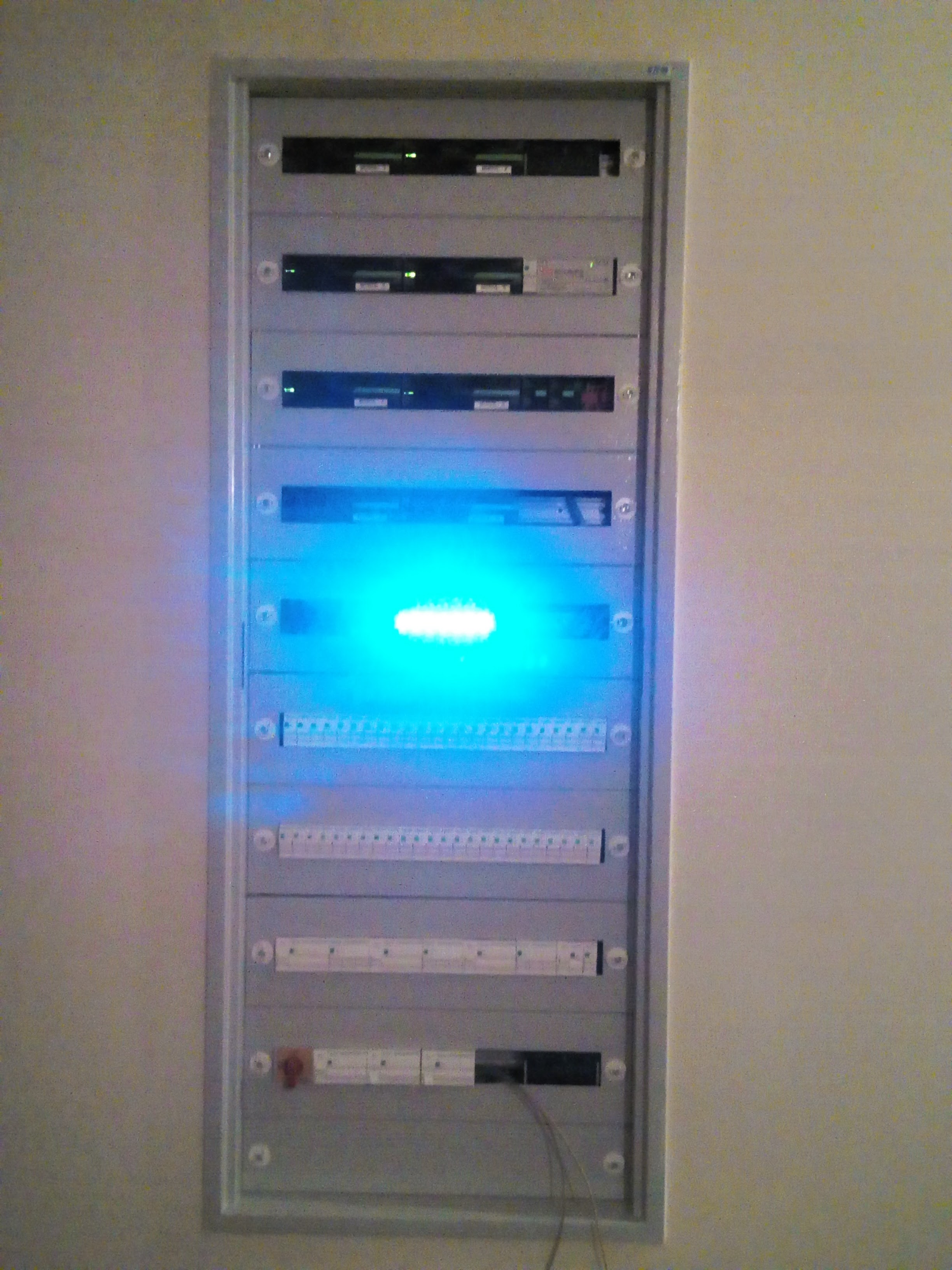

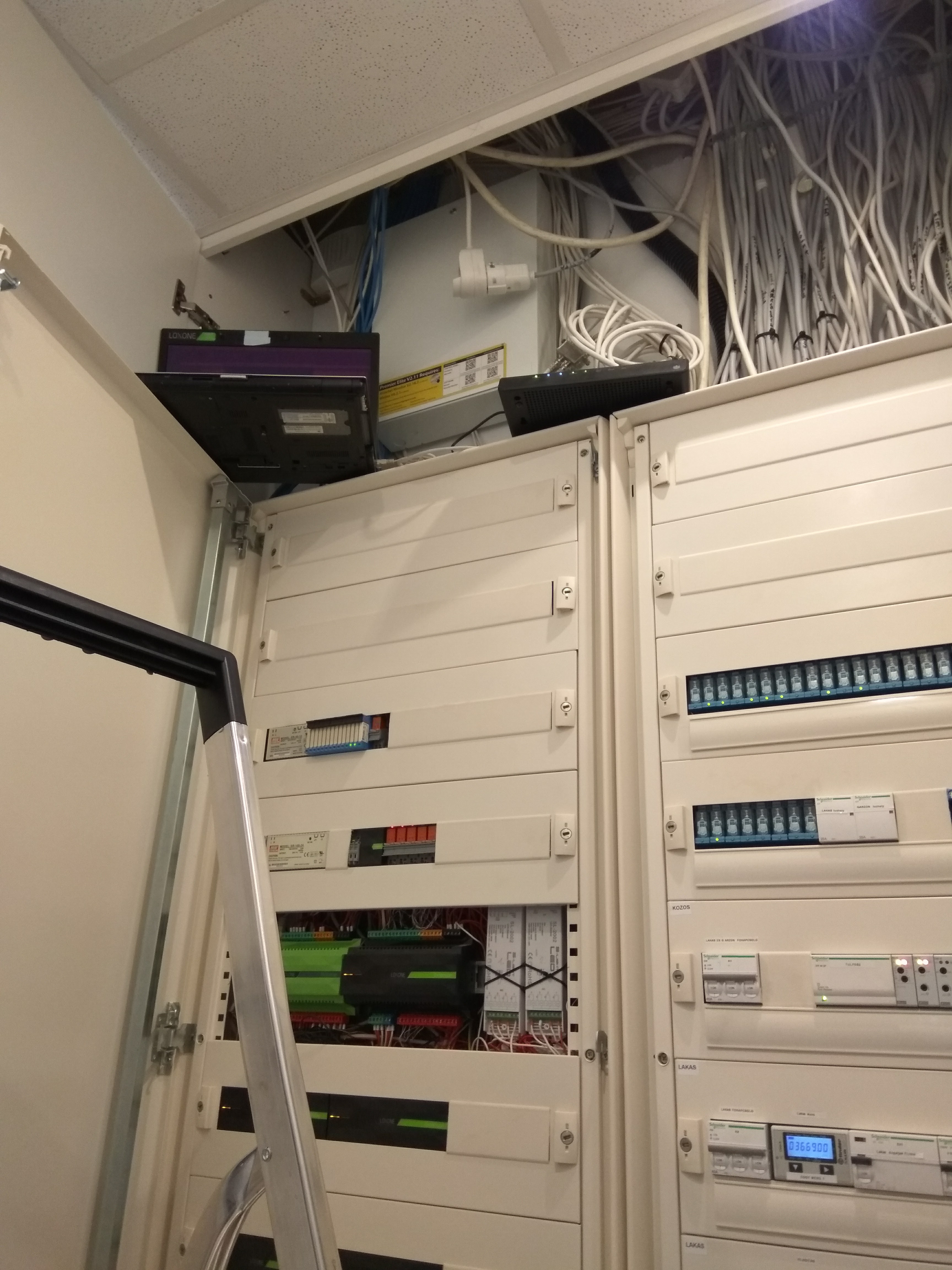

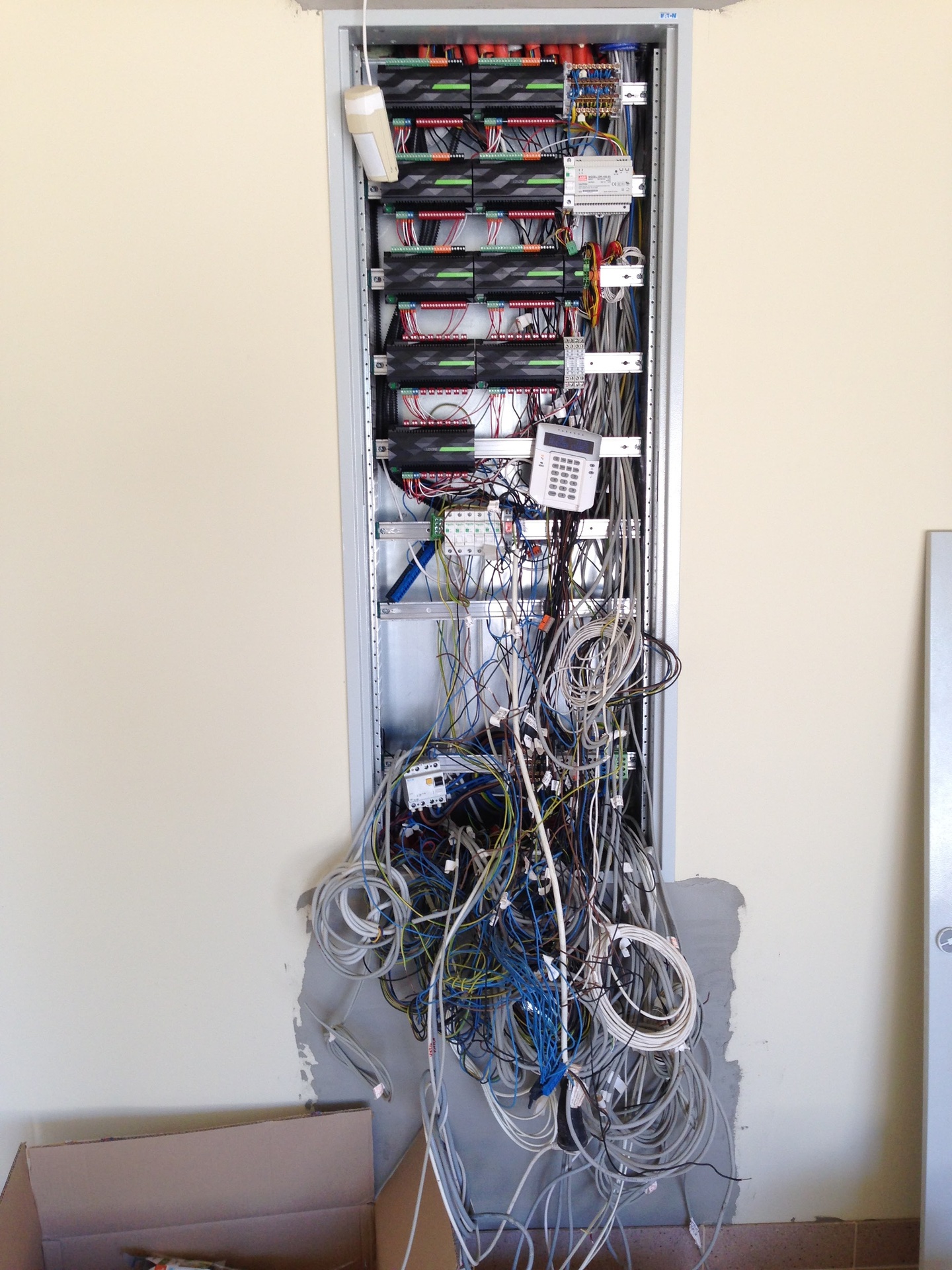

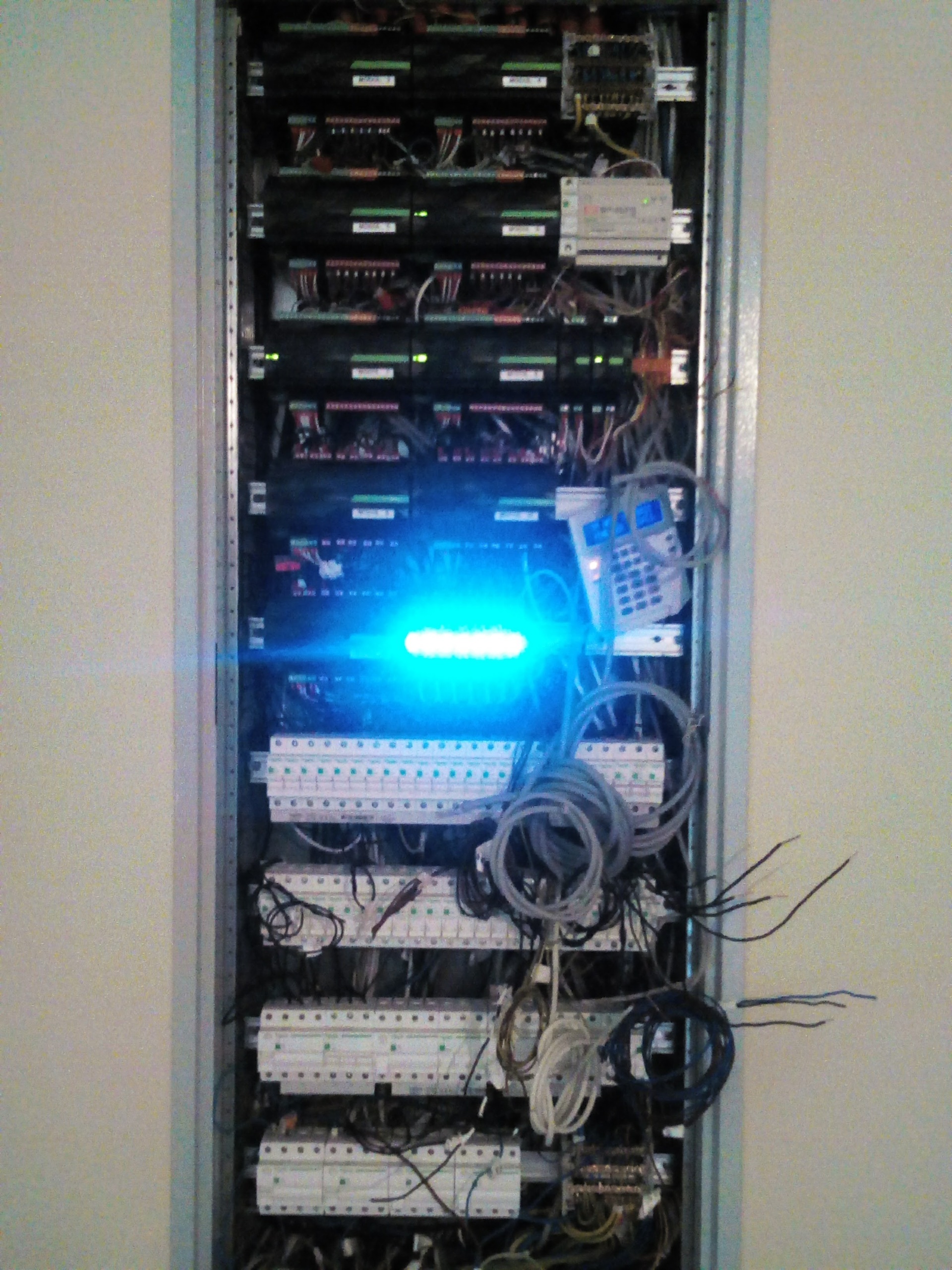

Our completed Miniserver installations

Smart lighting: the right light automatically, at every moment

Intelligent light controlComfortable and energy-efficient lighting in your home or office, fully automatically.
Light when and where it is neededMotion sensors make sure the light only comes on when it is really needed, and then switches off by itself.
Mood scenes at the touch of a buttonThe mood of a room can be changed in moments for dinner, for a film or for waking up in the morning.
Automatic, but you can always override itYou can take control at any time from a smartphone, a tablet or a wall switch.

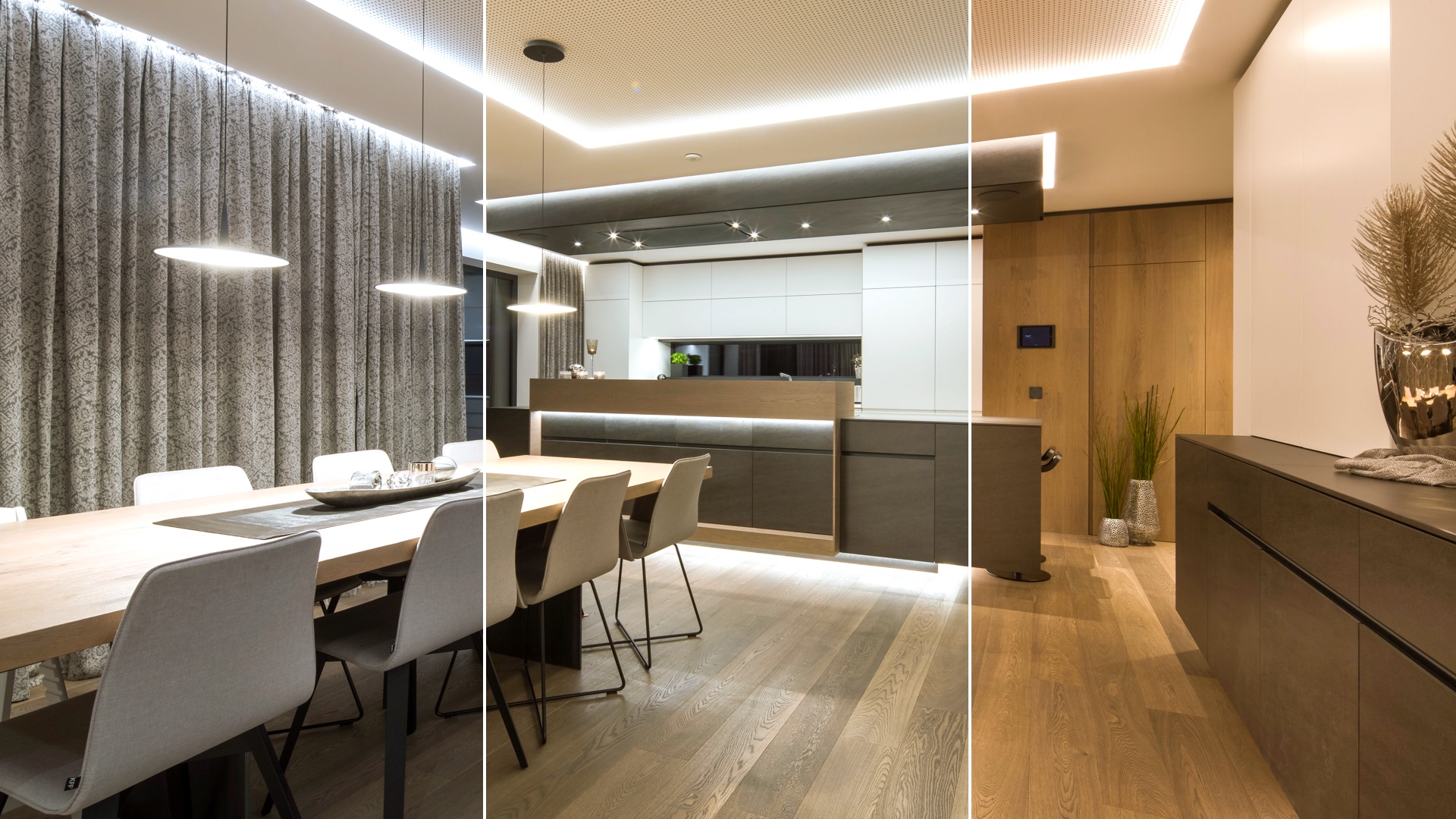

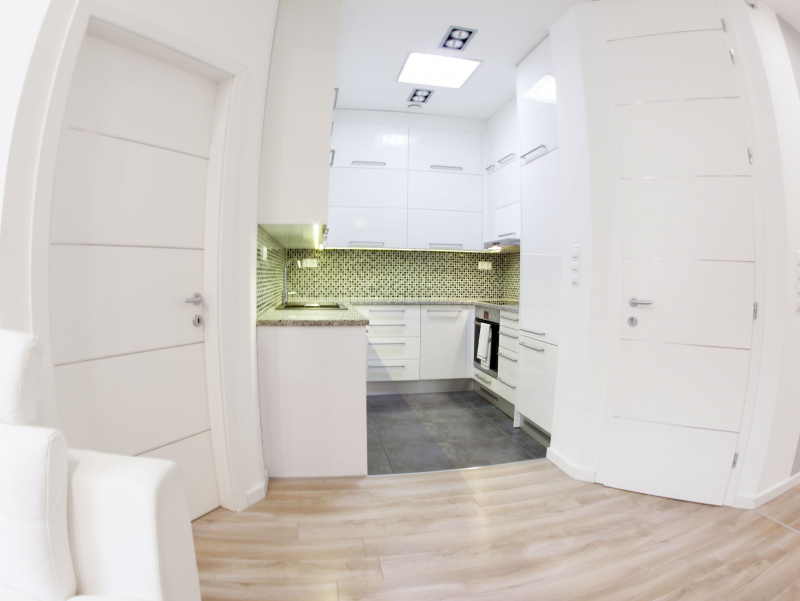

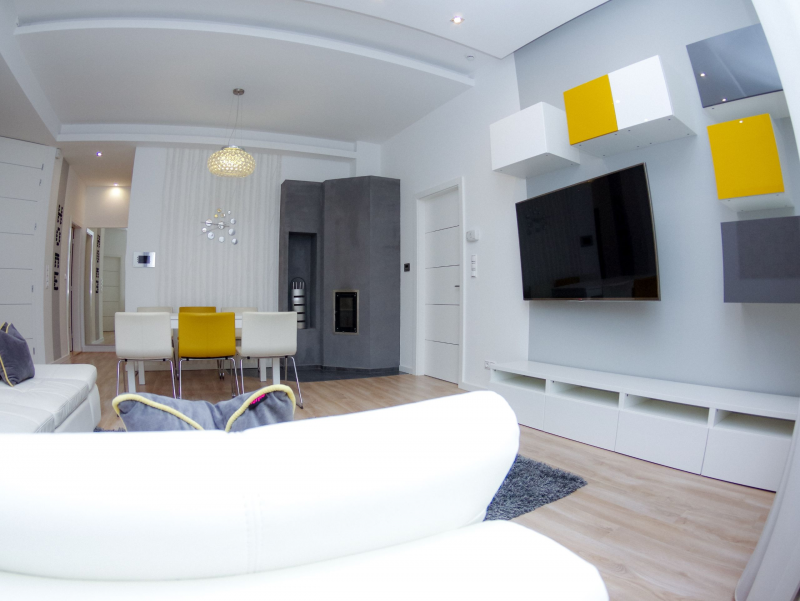

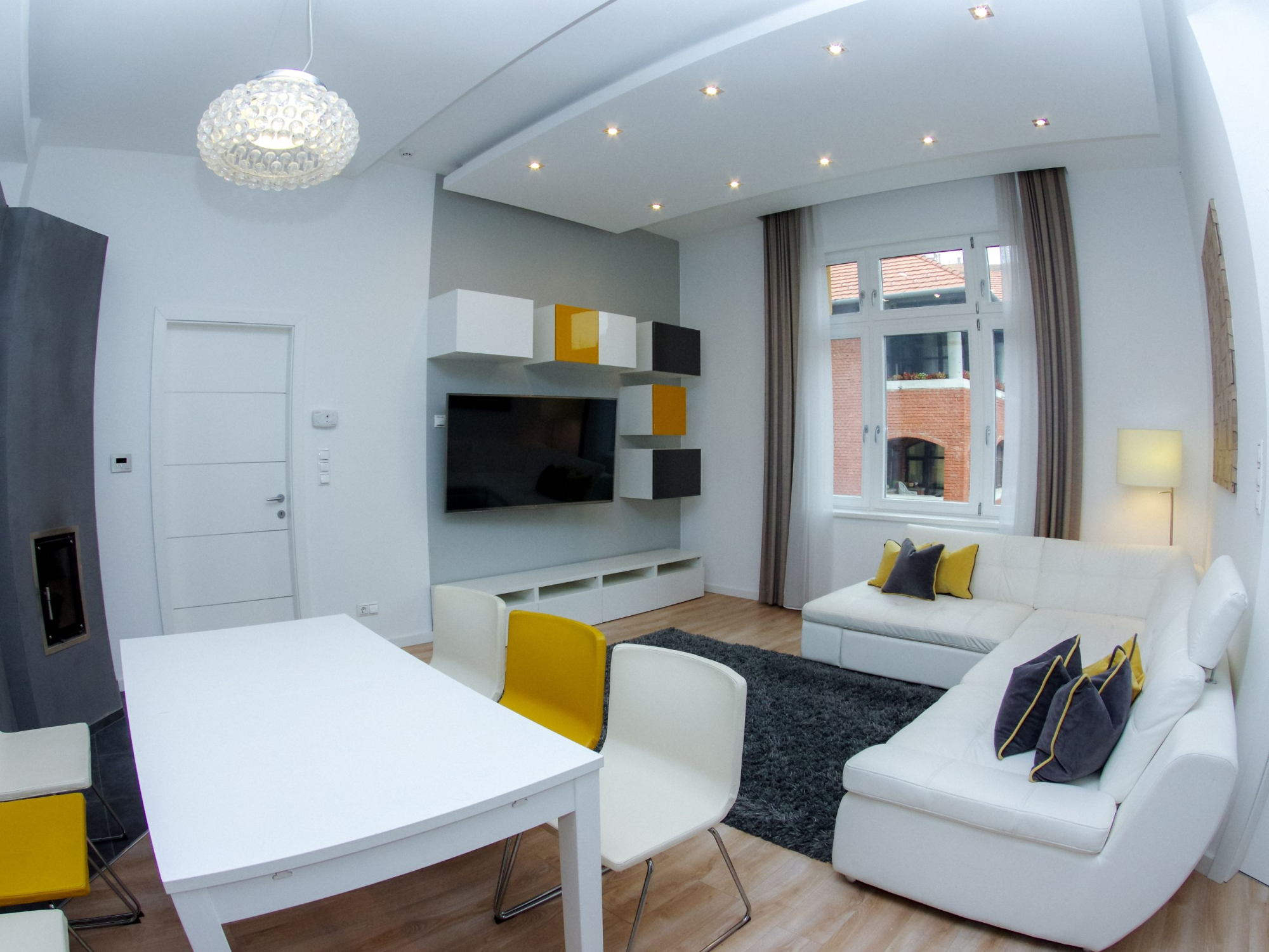

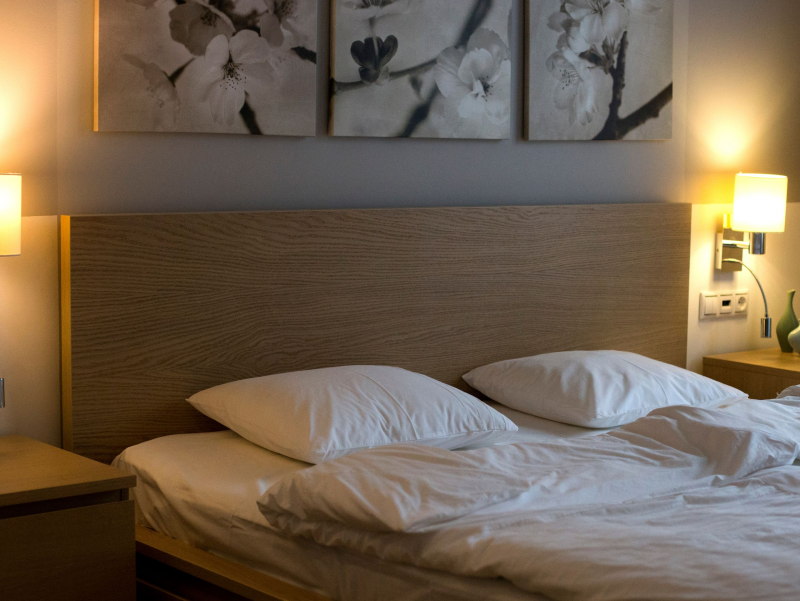

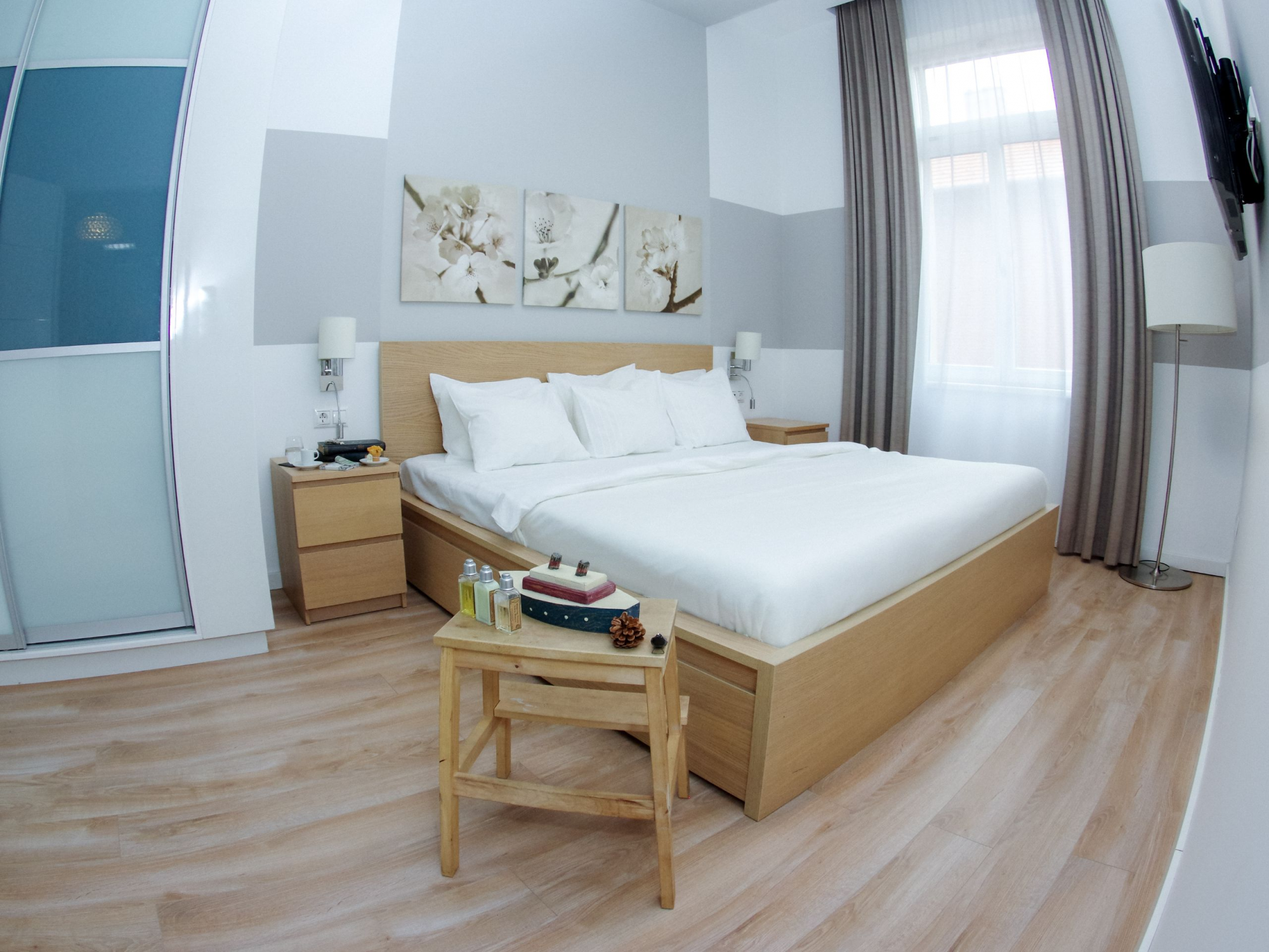

Our lighting projects

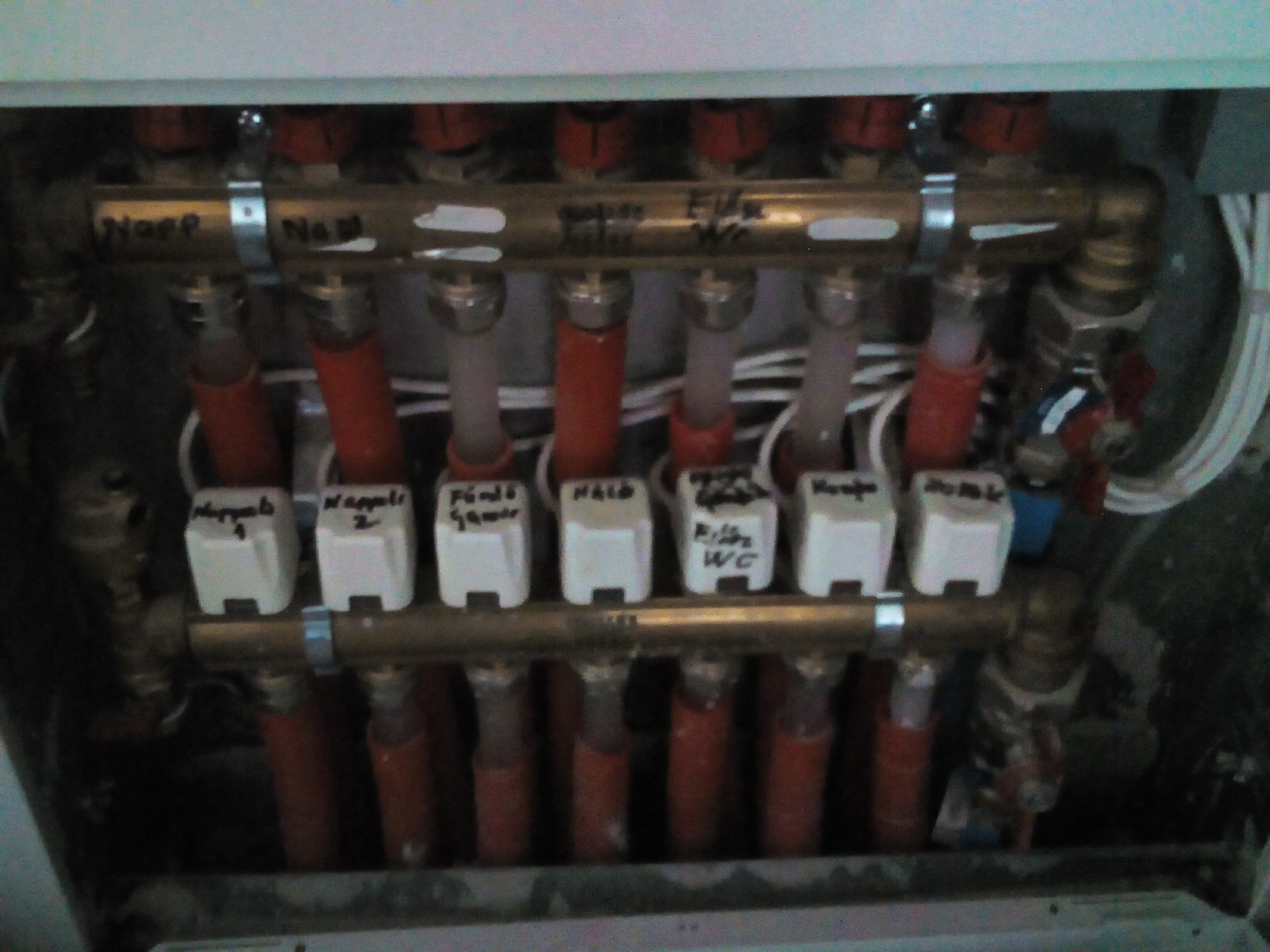

Smart underfloor heating: energy-efficient comfort without compromise

Room-by-room controlUnderfloor heating can be controlled separately in every room, following the time of day and the current temperature.
Energy-saving operationThe system turns the heating down automatically when nobody is in the room, which brings a significant saving.
Comfort all year roundIn both heating and cooling mode, and combined with a heat pump if you wish, it delivers a pleasant temperature through the floor.
Self-learning algorithmsThe system learns your heating habits and takes the weather forecast into account as well, fully automatically.

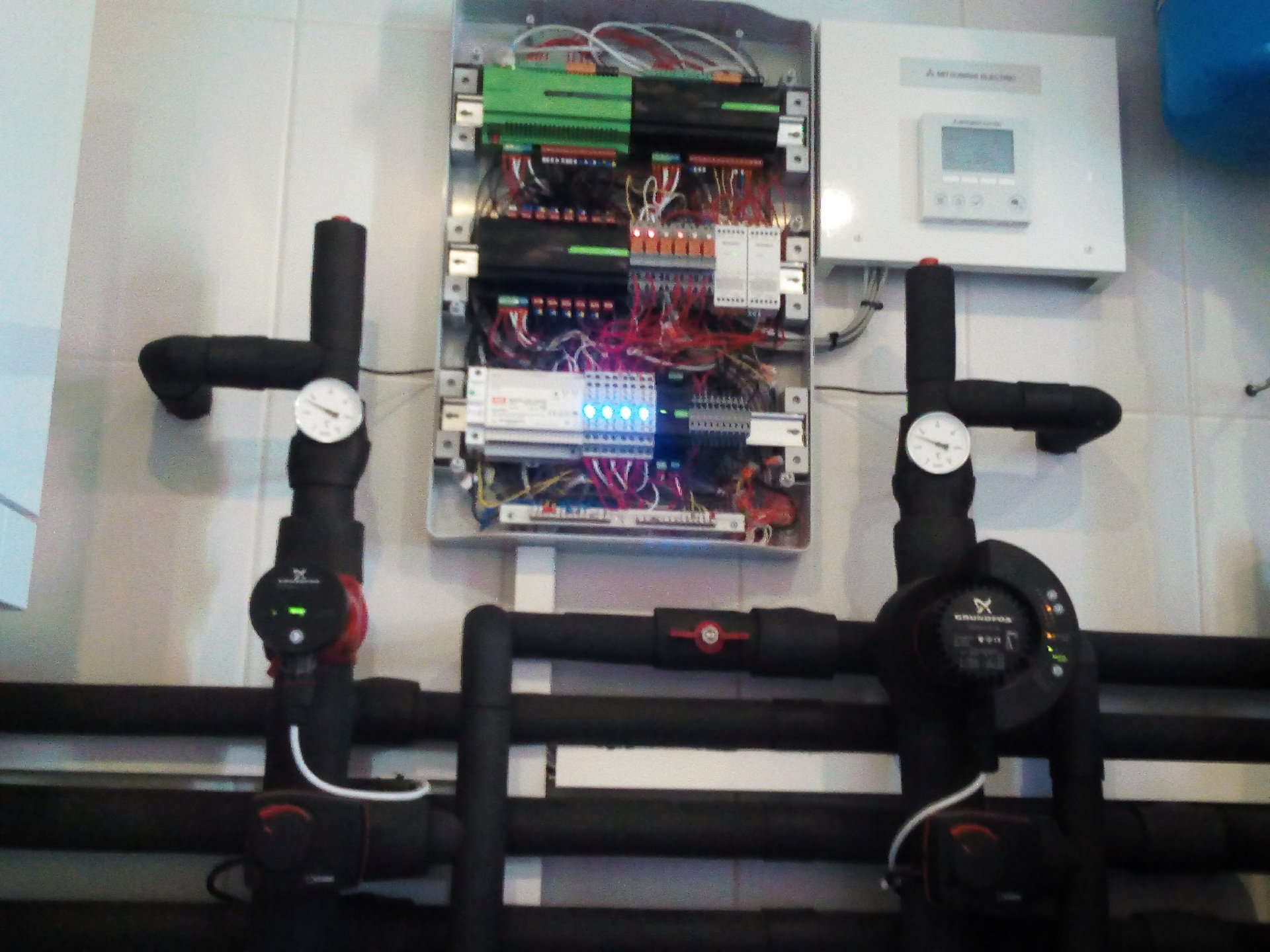

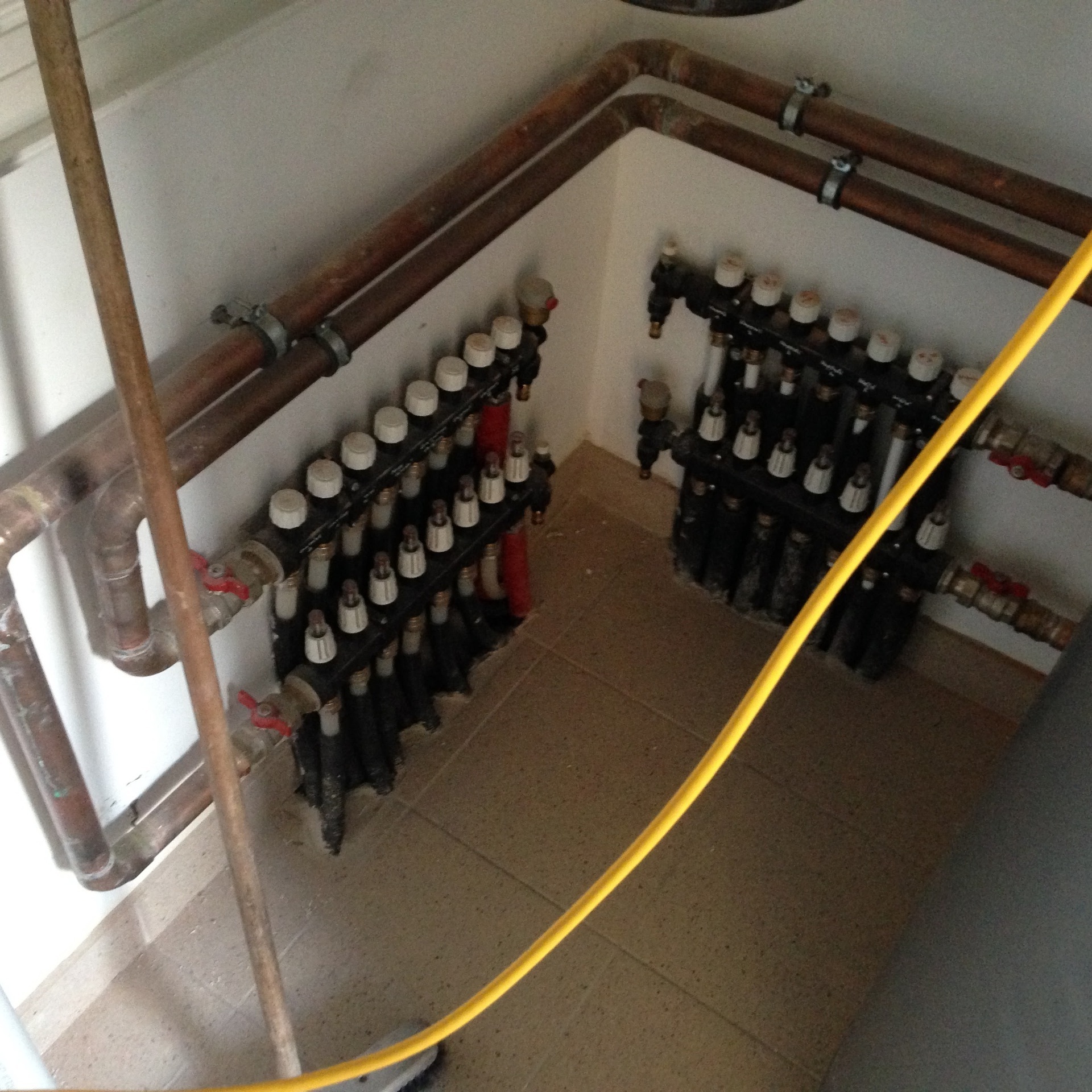

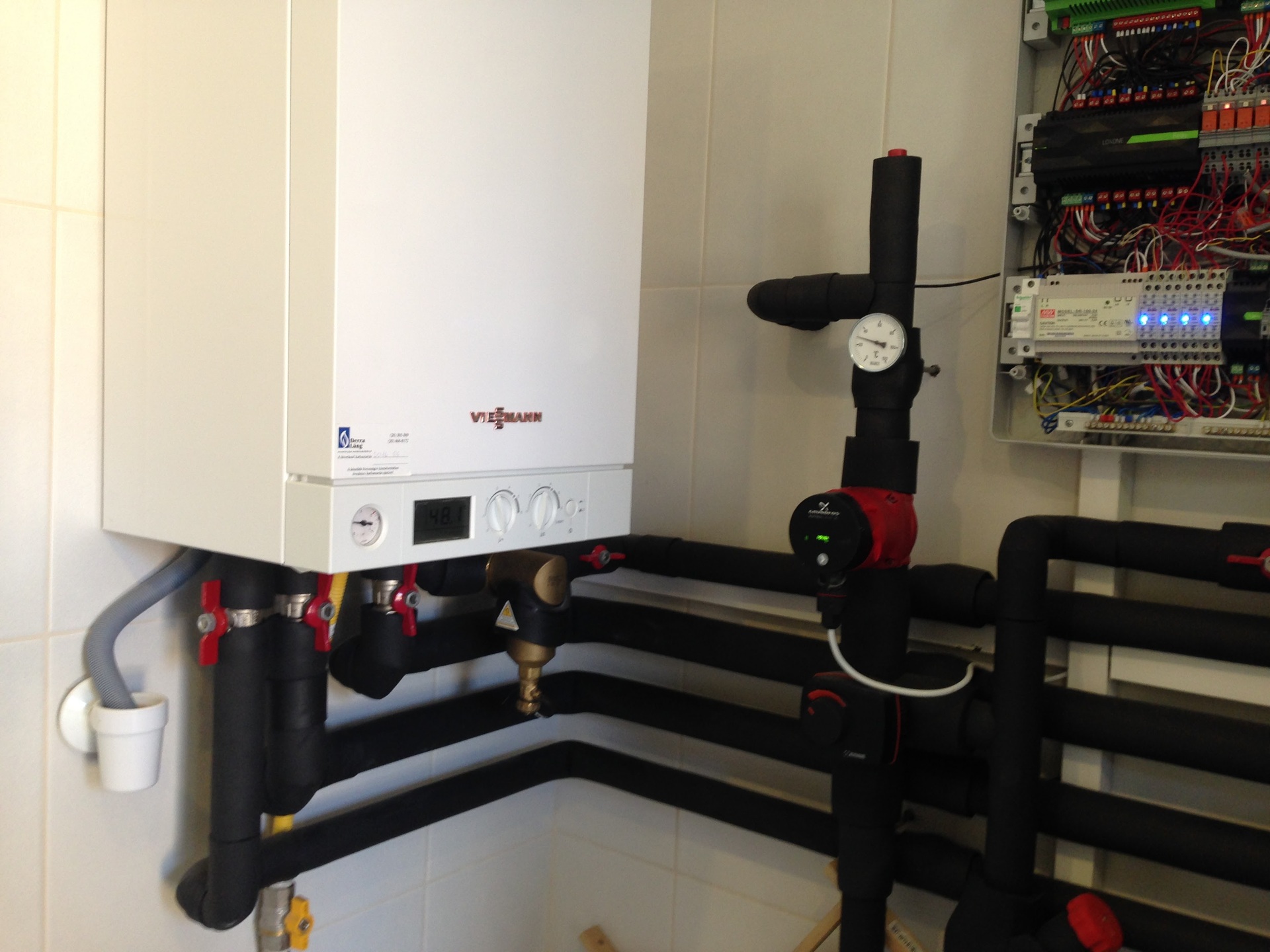

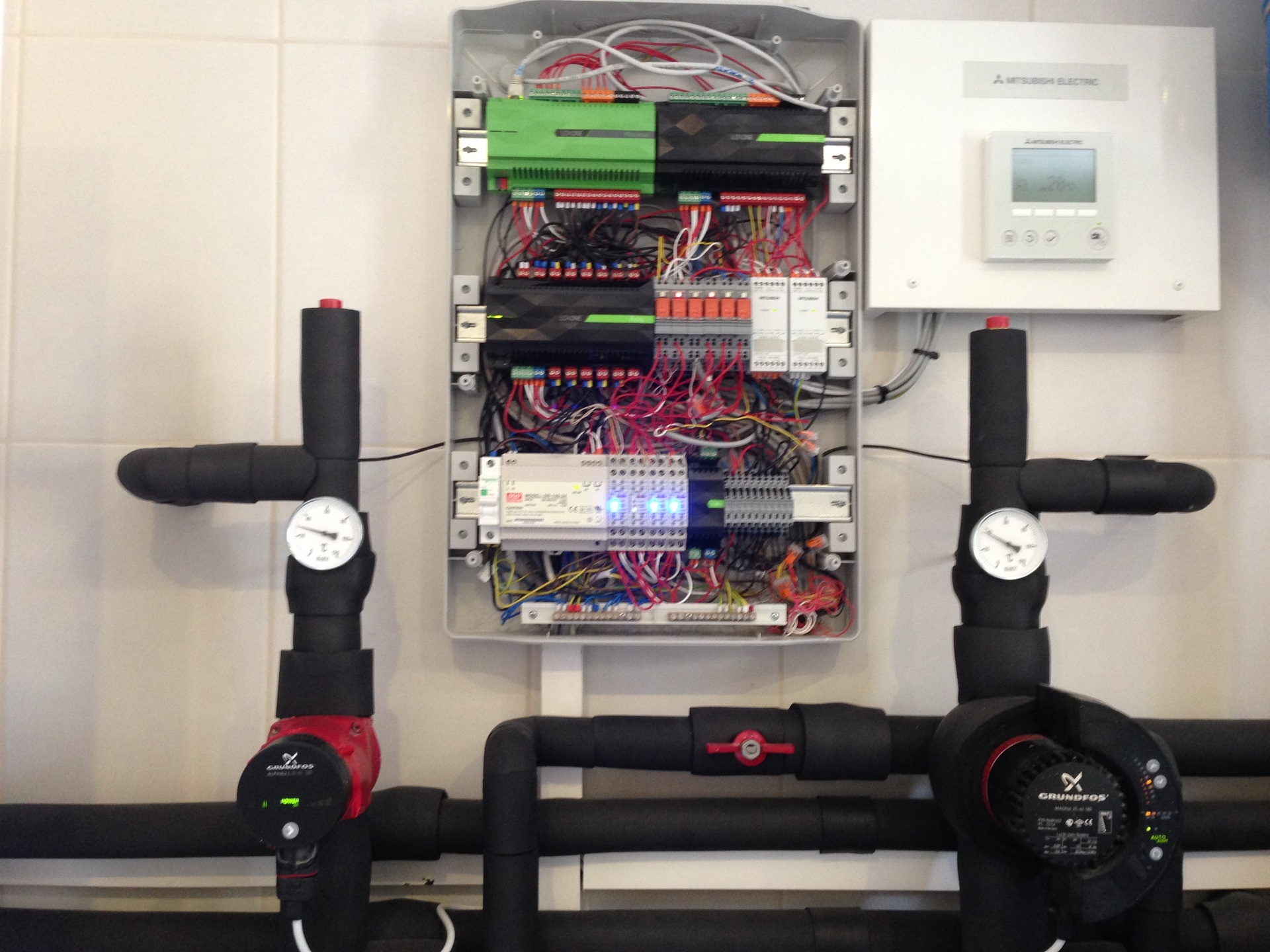

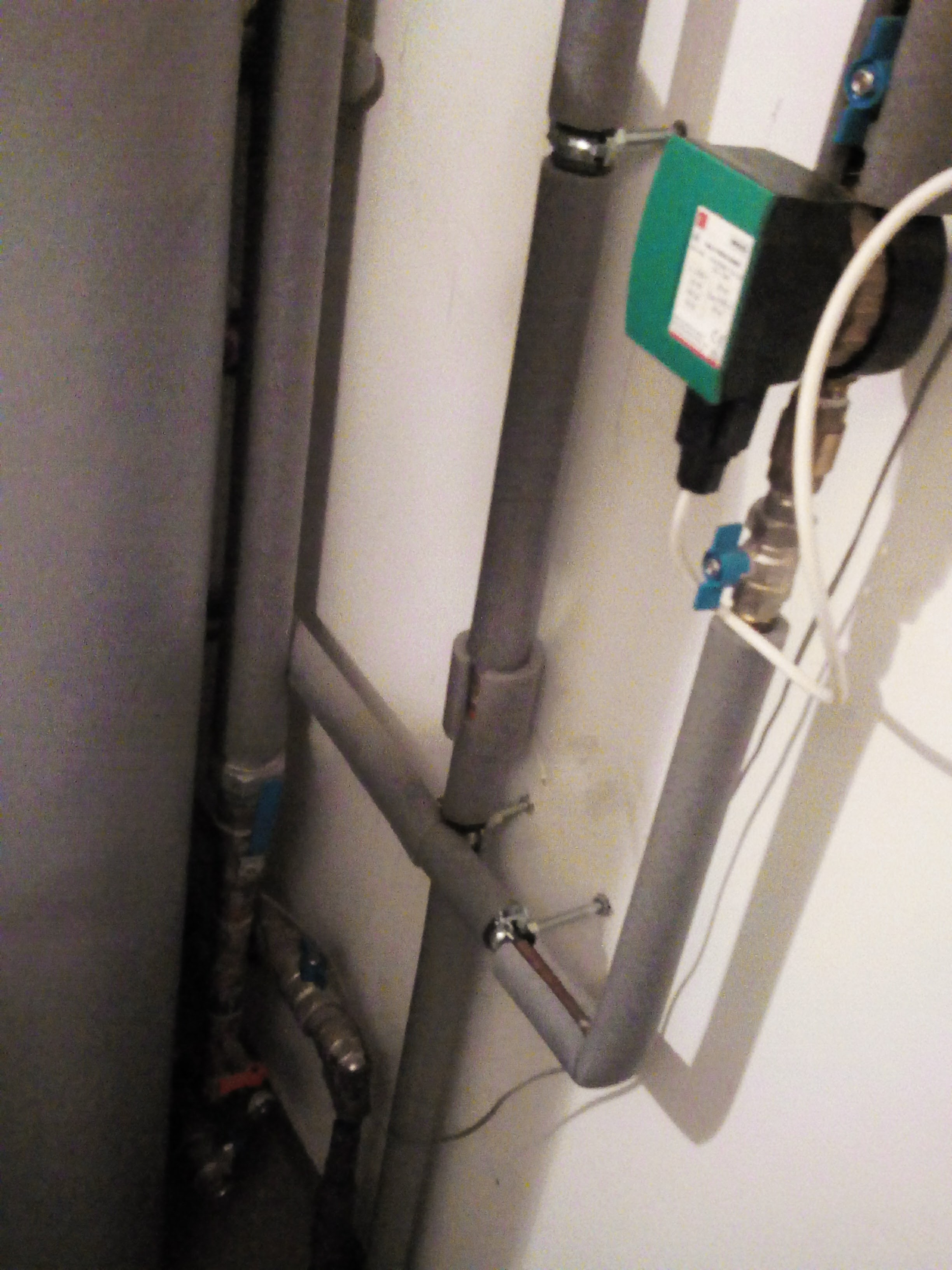

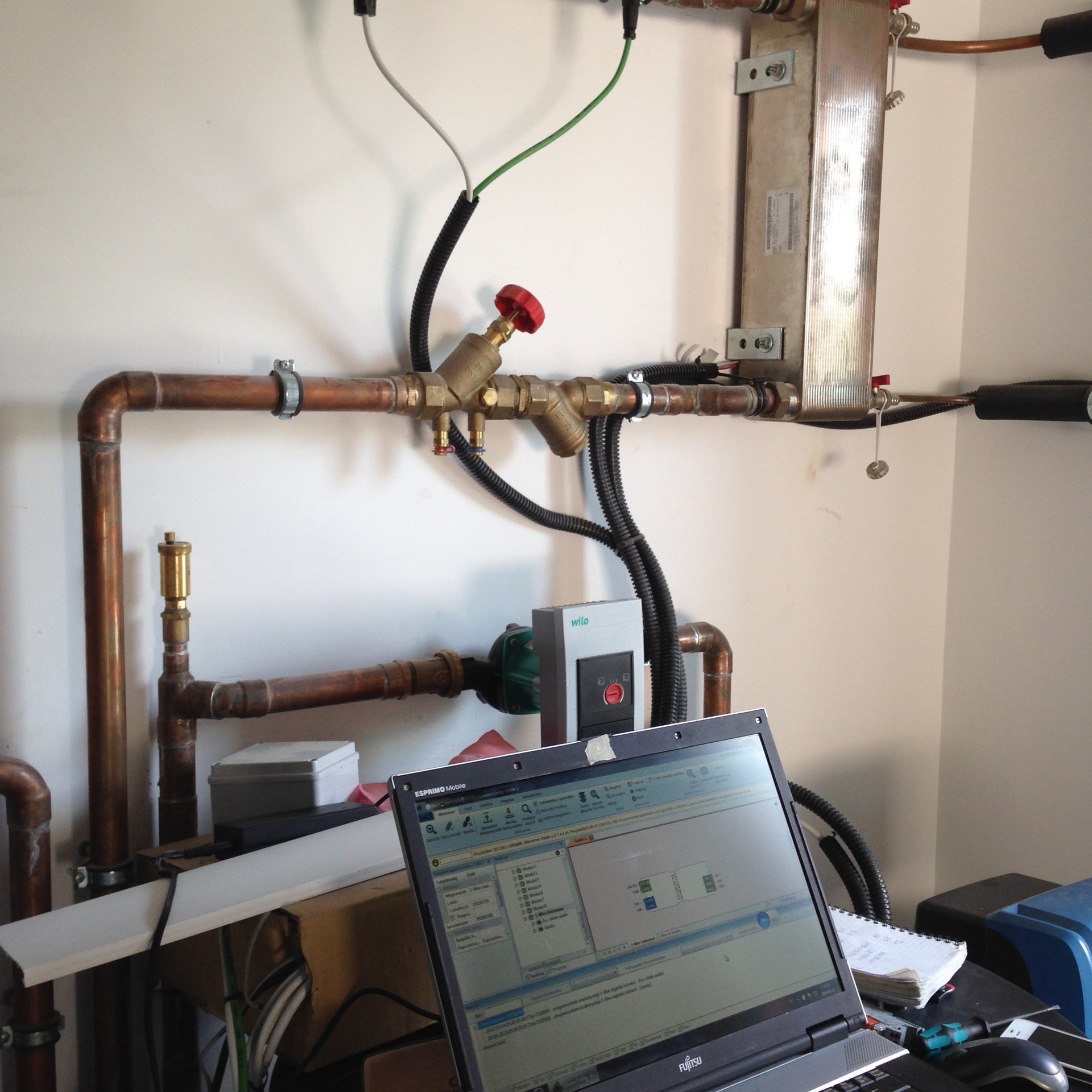

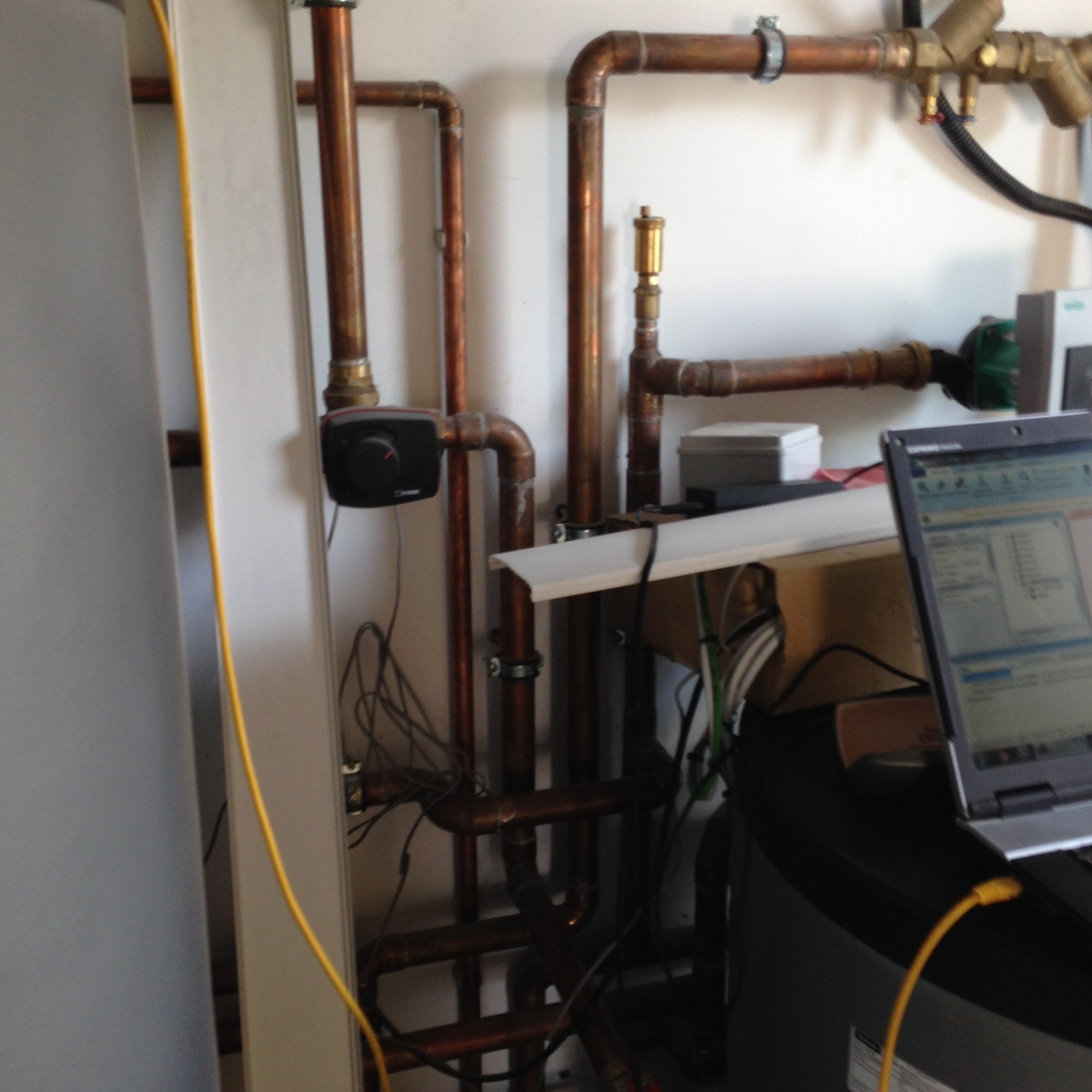

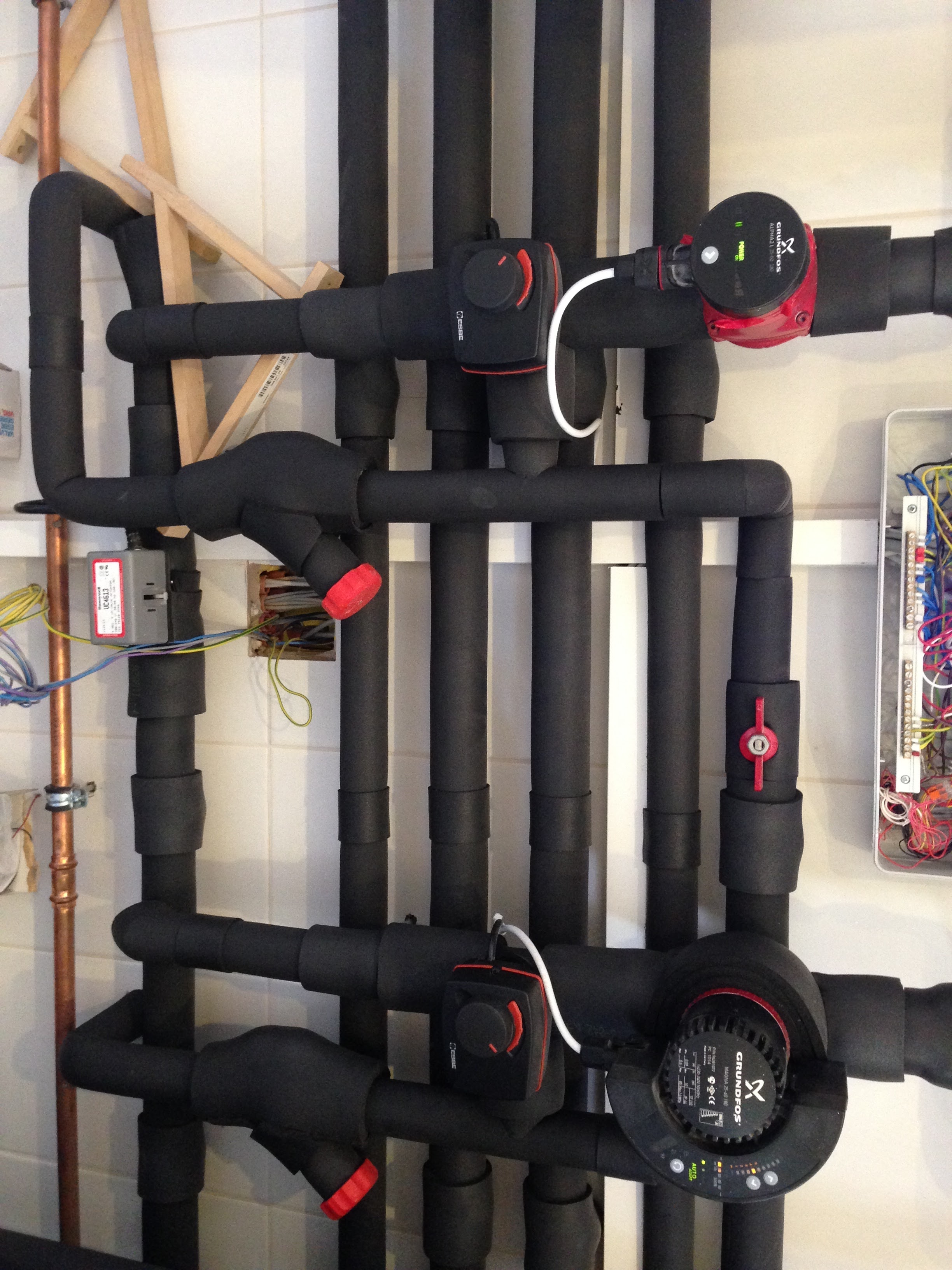

Our underfloor heating projects

Intelligent heat pump control: efficient comfort all year round

Full control over the heat pumpHeating and cooling run efficiently, reliably and fully automatically, with no intervention needed.
Maximum efficiency, minimum consumptionThe system watches the weather forecast, the temperature, the sunshine and presence, so the heat pump always runs at its optimum output.
Heating, cooling and hot water in one systemUnderfloor heating, ceiling cooling and domestic hot water production under coordinated control.
Zone control and solar combinationRoom-by-room control, with the system deciding dynamically when and how the heat pump should run, combined with solar power if you wish.

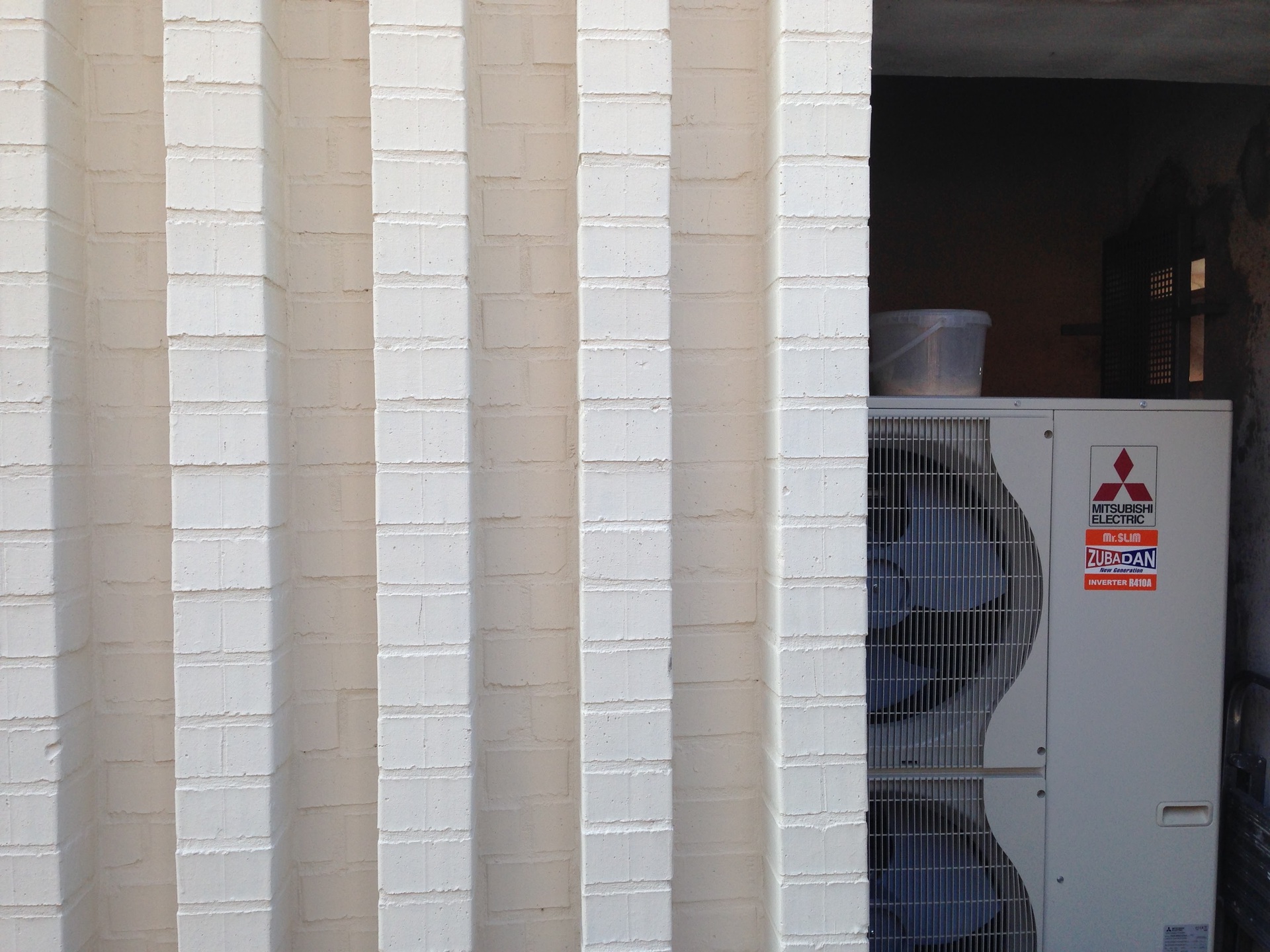

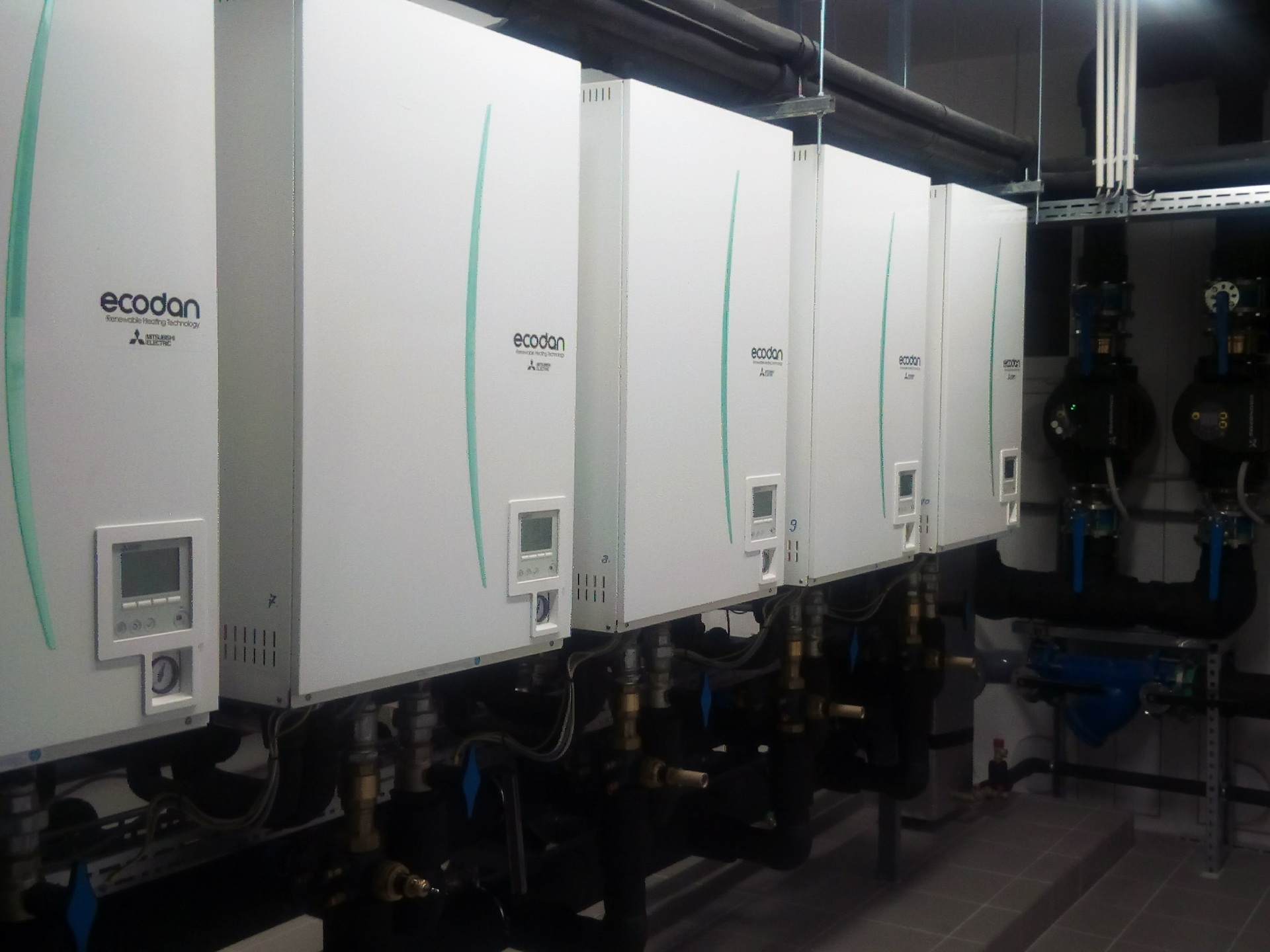

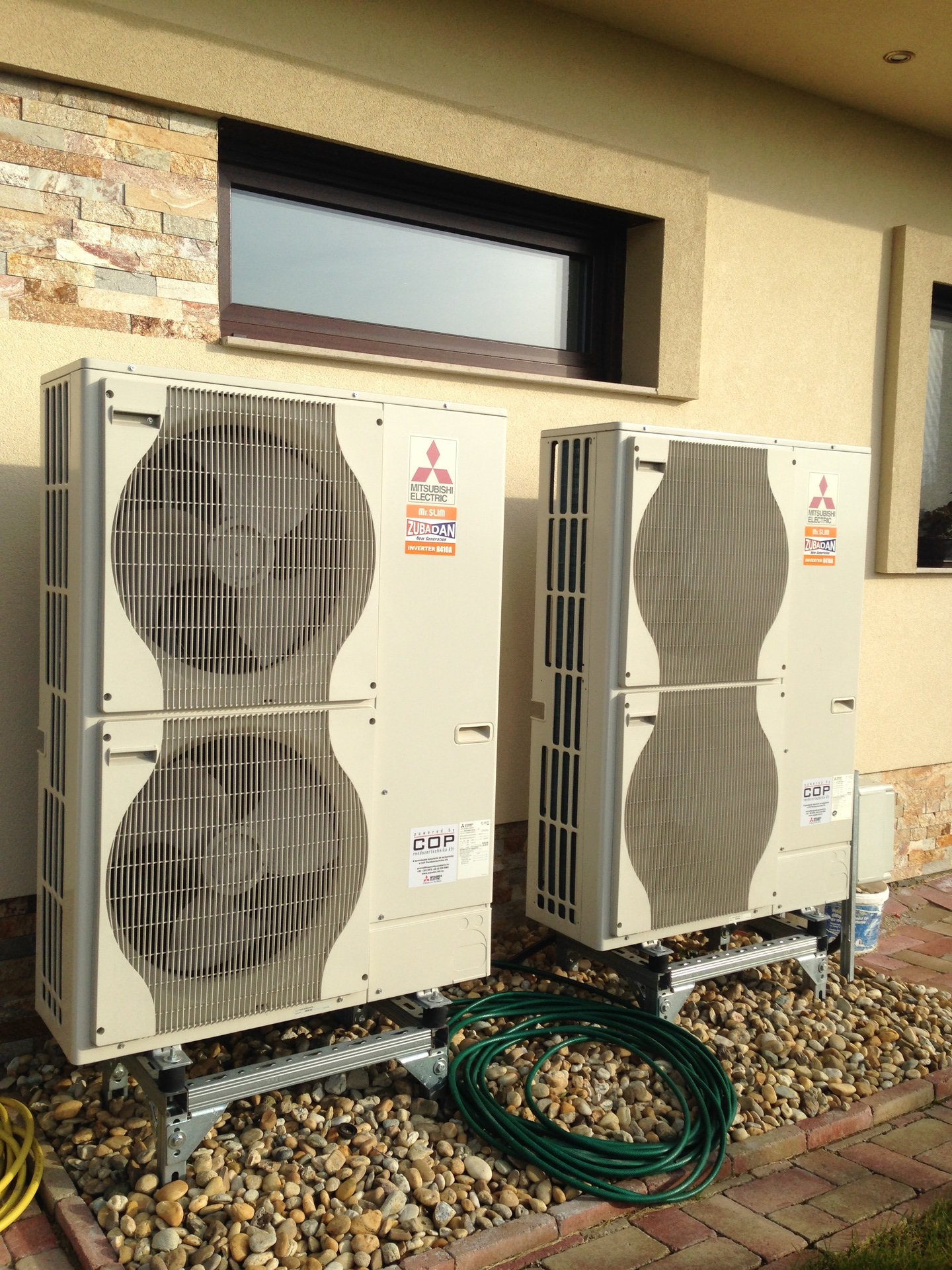

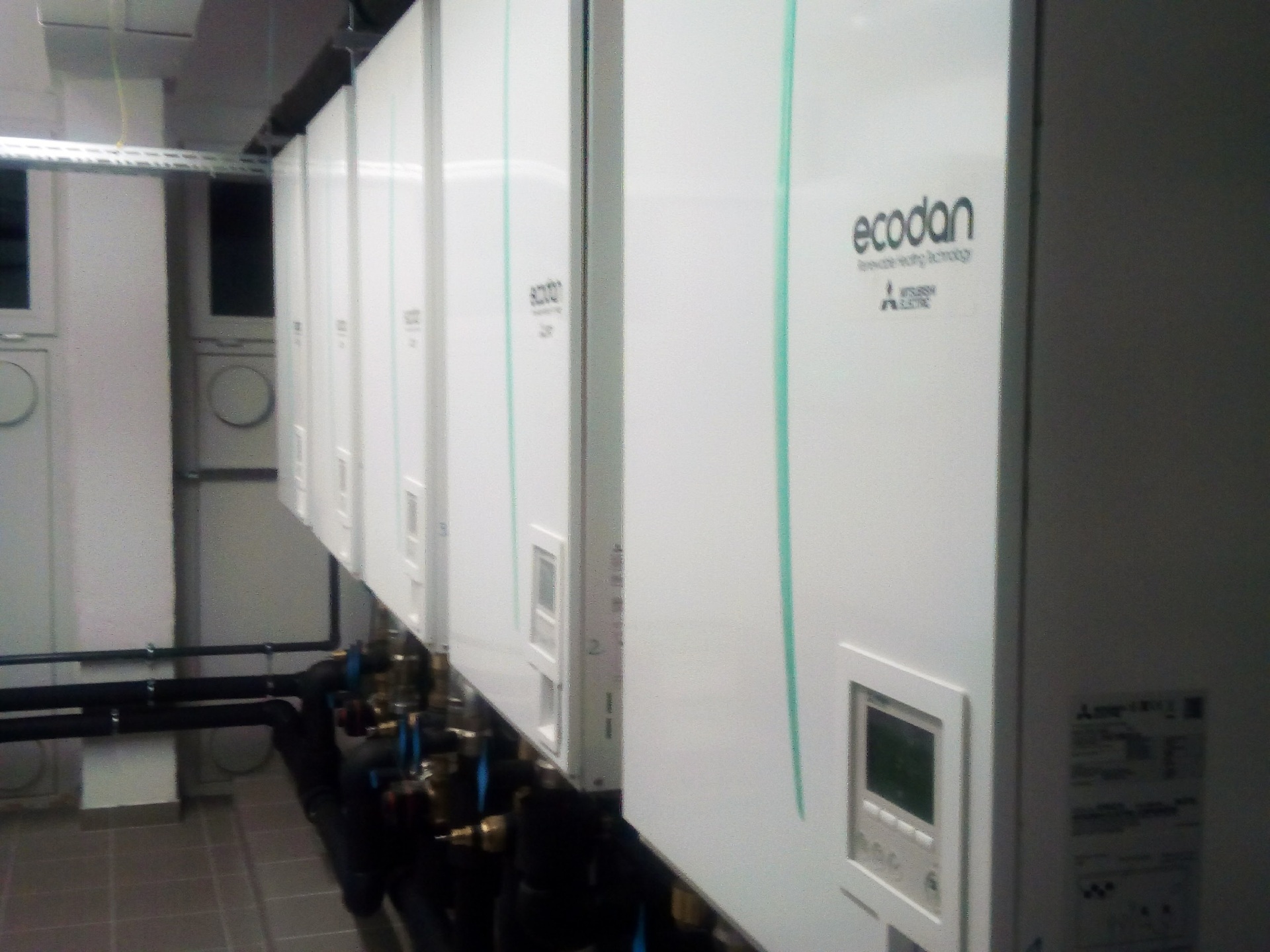

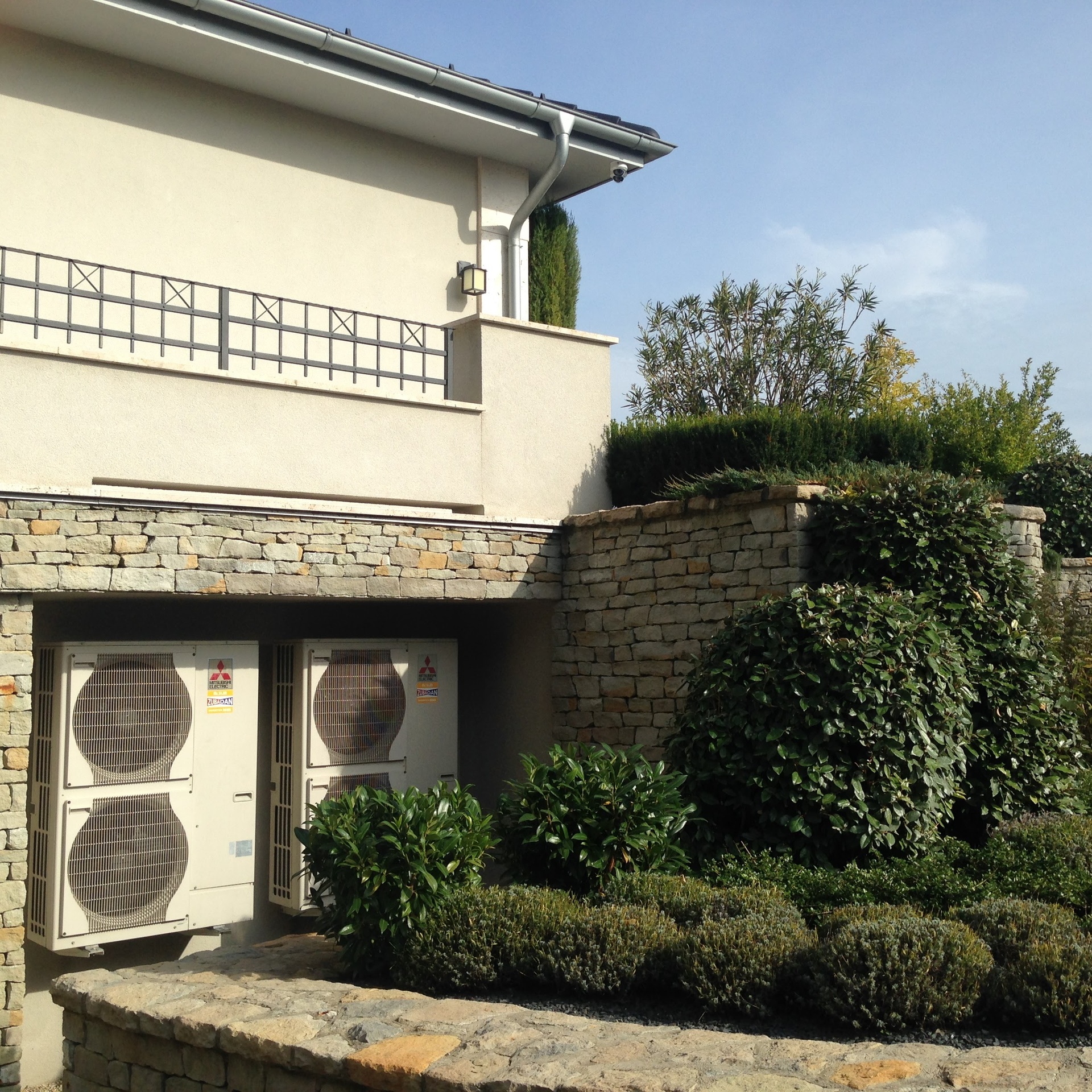

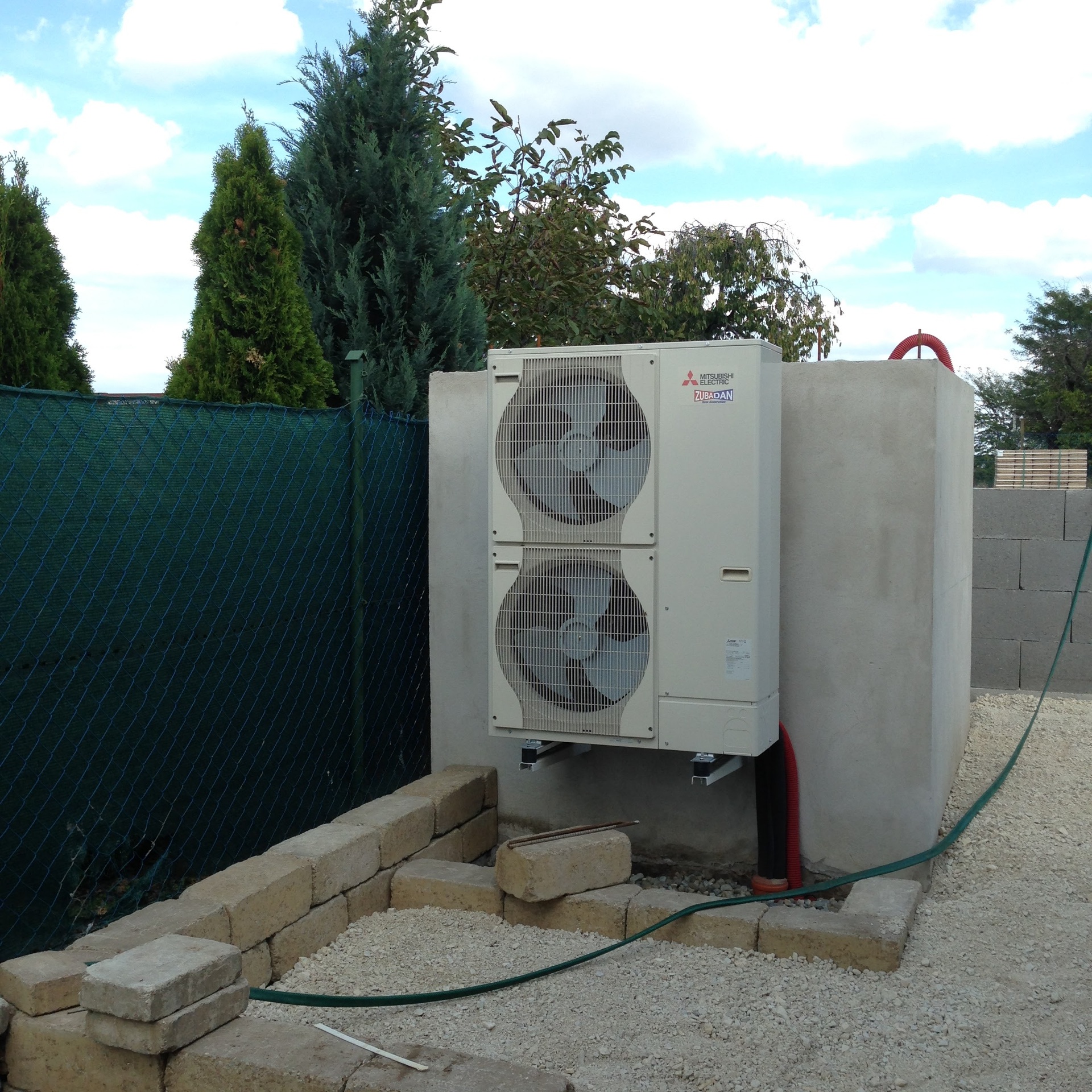

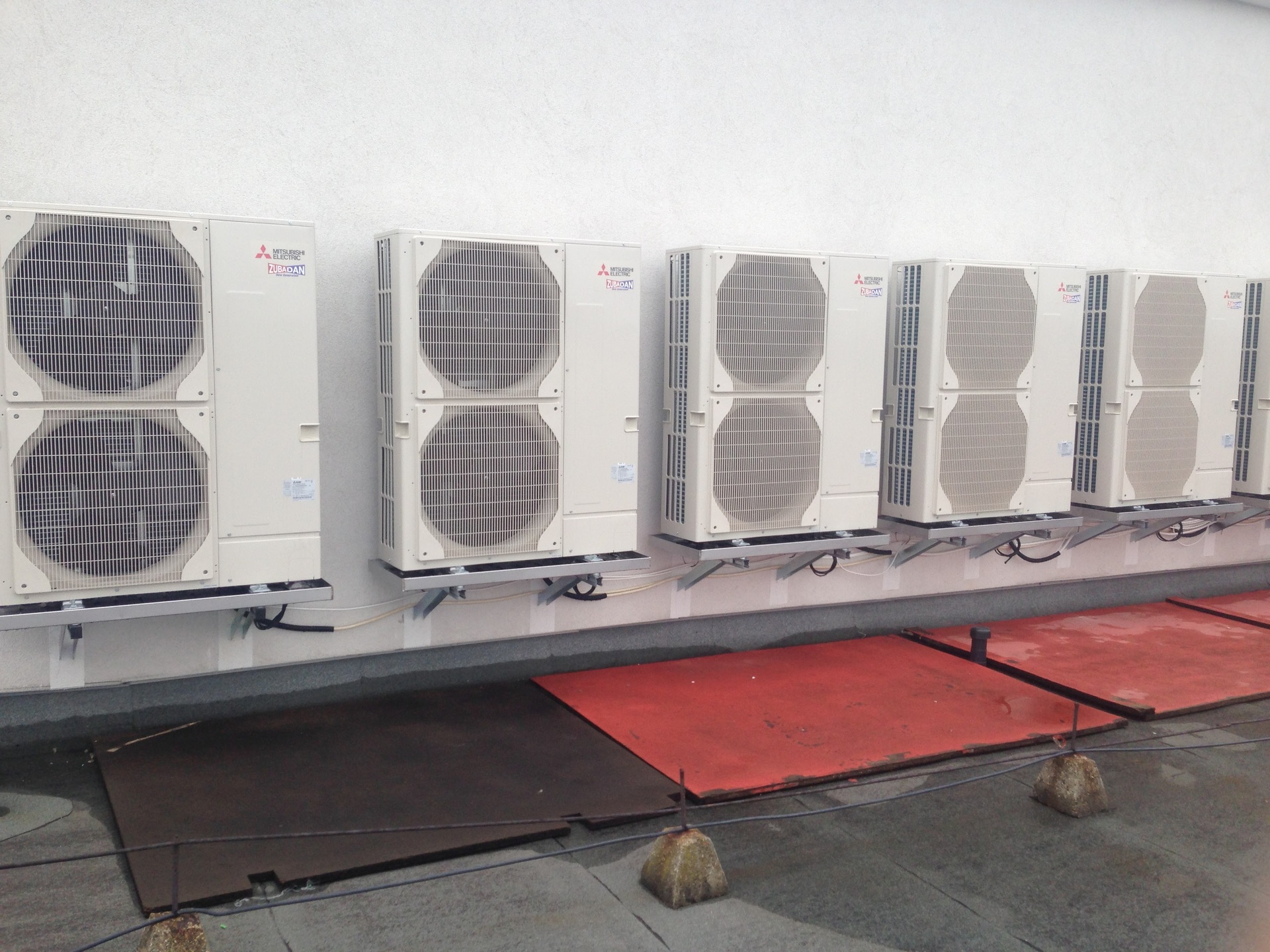

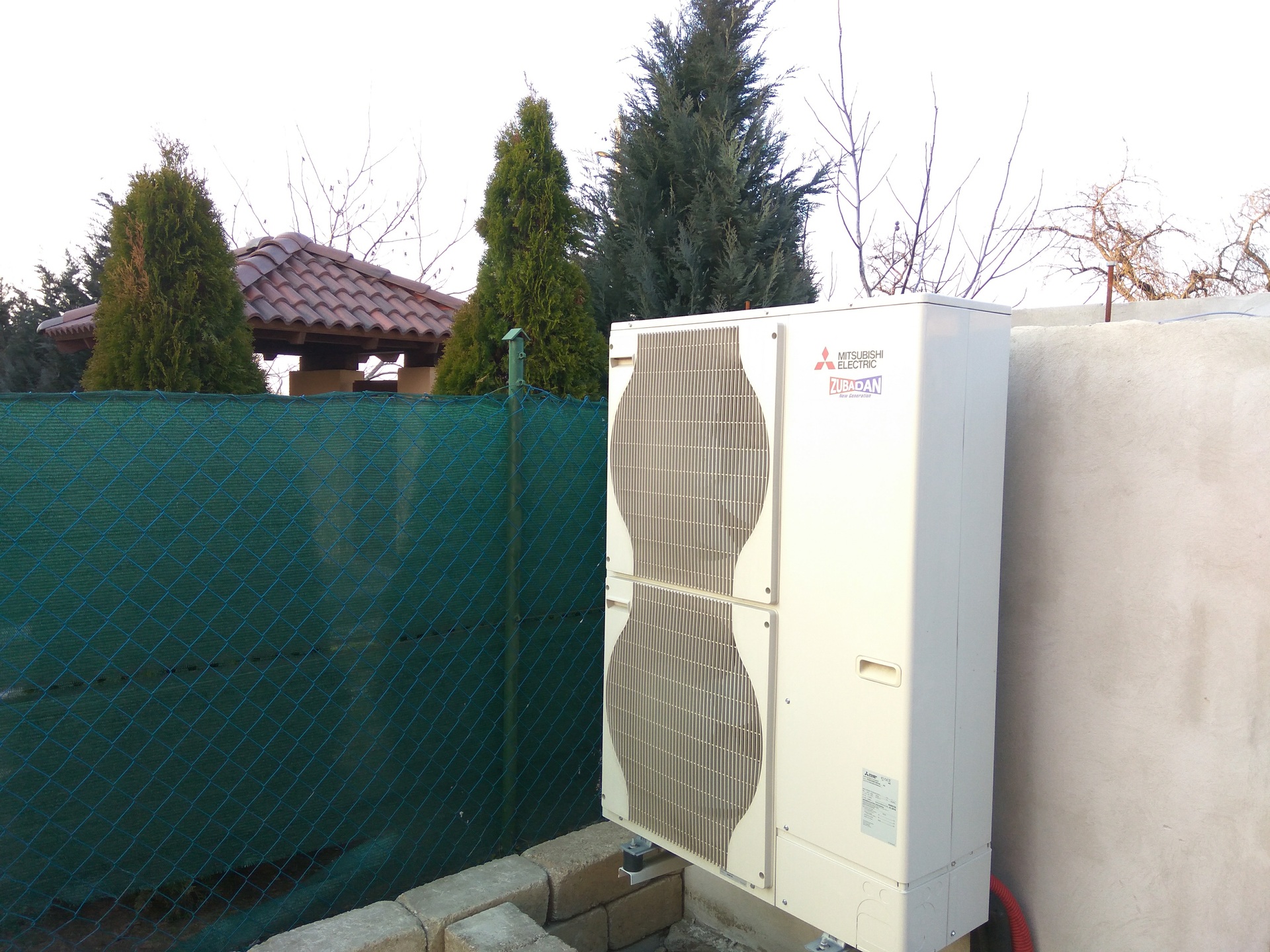

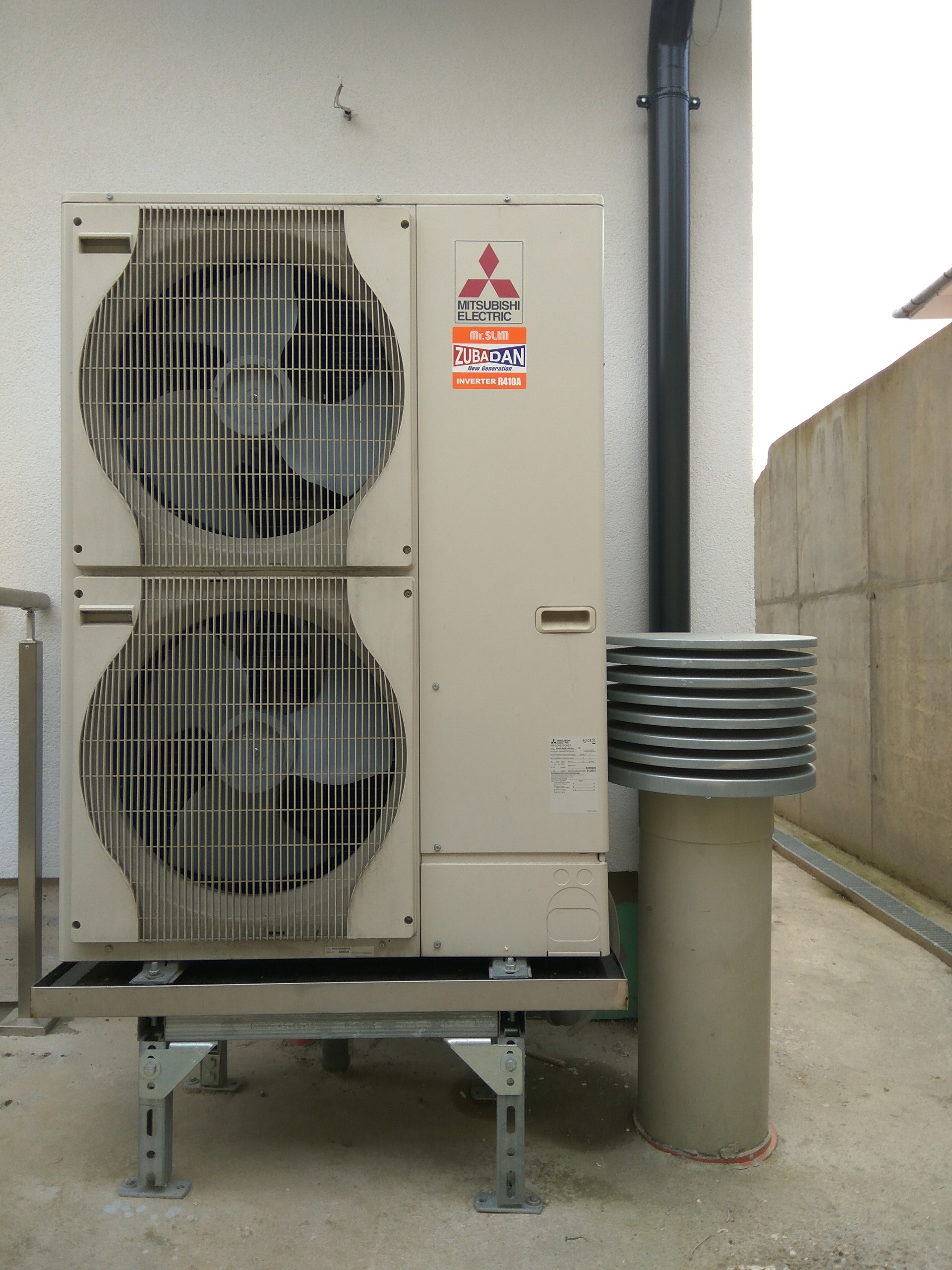

Our heat pump projects

Wired or wireless? Loxone Tree and Air

A new build and a retrofit call for different solutions. The two technologies can be combined within one system, and we help you choose during the survey.

For new builds

Loxone Tree

The wired system, the most dependable choice for a new build or a full refurbishment.

  • Maximum operational reliability
  • The most favourable cost in the long run
  • Ideal for large systems too
For retrofitting

Loxone Air

Wireless technology that lets you build a smart home even in a finished, furnished property.

  • No wall chasing, no major refurbishment
  • Quick installation, in a few days if needed
  • Expandable at any time

The two can be combined: you can use wired and wireless devices within a single system.

Loxone communication technologies and extension modules

Besides Tree and Air, the Miniserver handles further buses and industrial standards, so lighting, heating, shading and metering can all be joined into a single system. Below we set out what each technology is for and which extension module builds it.

1. Communication technologies

Loxone Link

The dedicated extension bus of the Miniserver. Up to 30 Extensions can be chained onto it, over a total cable length of 500 metres.

Loxone Tree

A two-wire device bus that carries power in the same cable. Fifty devices and 500 metres per branch, in star or tree topology.

Loxone Air

An 868 MHz wireless network in which the devices relay each other's signal. For extending a system without breaking into walls.

KNX

Linking an existing KNX installation to the Loxone logic, so the devices already in place can stay where they are.

DALI

Addressable light control: brightness, colour temperature and fault reporting for each luminaire. For offices and larger buildings.

DMX

Control of RGB and RGBW LED strips, decorative and mood lighting over many channels.

Modbus RTU and TCP

Reading data from and controlling solar inverters, heat pumps, energy meters and industrial devices.

M-Bus

Automatic reading of water, gas and heat meters, for sub-metering and billing.

1-Wire

Affordable temperature and humidity sensors on a longer bus, for many measuring points.

EnOcean

Battery-free wireless switches and sensors that run on the energy of the button press.

RS232 and RS485

Connecting devices that use a serial protocol, boilers, projectors and bespoke industrial controllers for example.

IP network

Connecting cameras, MQTT devices and web APIs over the network, with virtual inputs and outputs.

2. Extension modules in the distribution board

The modules mount on a DIN rail and connect to the Miniserver over the Link bus. We only fit what the given building genuinely needs.

  • Tree Extension: two independent Tree branches, with up to 50 devices on each.
  • Air Base Extension: the wireless base station for Loxone Air devices.
  • Relay Extension: 14 volt-free relay outputs for larger loads.
  • Dimmer Extension: four dimming channels for mains-voltage luminaires, with phase control.
  • DI Extension: 20 digital inputs, with a pulse counter function as well, for S0 meters for example.
  • AI Extension: eight analogue inputs, four voltage and four current-loop channels.
  • AO Extension: four analogue outputs for valves, mixing valves and frequency converters.
  • DALI Extension: a full DALI line with up to 64 lighting addresses, also available in a smaller version.
  • DMX Extension: a DMX line for colour LED and decorative lighting.
  • KNX Extension: connects a KNX bus to the Miniserver.
  • Modbus Extension: reads and controls Modbus RTU devices.
  • M-Bus Extension: automatic reading of consumption meters.
  • 1-Wire Extension: 1-Wire sensors, typically for temperature measurement.
  • RS232 and RS485 Extension: serial devices with a bespoke protocol.
  • EnOcean Extension: receives battery-free wireless switches and sensors.
  • Multi Extension Air: a wireless input and output extension for places the cable does not reach.
  • IR Control Air: infrared control for air conditioners and AV equipment.
  • Manufacturer extensions: direct integration of Internorm, Fröling and Schüco devices.

You do not need to know them all: after the survey we put together which technology and which module is the most cost-effective for your building.

Four steps to a smart home

How we work

1Survey

Going through your needs in an on-site or online consultation.

2System design

A specific device list and an itemised quote.

3Installation

Fitting the system with tidy, documented workmanship.

4Programming

Configuration, training and handover, with follow-up.

Request a free consultation

Frequently asked questions about the Loxone smart home

We have collected what our clients most often ask about the Loxone system, from prices to retrofitting.

The price of a Loxone smart home depends on the size of the building and the functions you want. The main cost elements are the Miniserver, the extension modules, the sensors and the labour. After a survey we give you an itemised quote, and the system can be built out in stages, so you do not have to do everything at once.
Yes. With the wireless devices of Loxone Air, a smart home can be added to a finished, furnished property without breaking into walls or carrying out a major refurbishment. For a new build or a full refurbishment we recommend the wired Tree system.
Tree is the wired system from Loxone: for a new build it is the most dependable and, in the long run, the cheapest solution. Air is a wireless technology, ideal for retrofitting and refurbishment. The two can be combined within one system, and we plan that at the survey.
The Loxone Miniserver controls locally, on your own network, so every function keeps working during an internet outage; the system does not depend on the cloud. After a power cut the control comes back automatically and the settings are not lost. An internet connection is only needed for remote access.
No. Loxone is a one-off investment: the mobile app and local control are free of charge, with no compulsory cloud subscription. That is an important difference from smart home services billed monthly.
Loxone is a complete system in itself, with its own app, but voice control and smart device integration can be set up on request. We go through the specific options at the survey, as they depend on the devices you already have.
KNX is a manufacturer-independent standard, while Loxone is a complete system built on central logic that is quicker to configure and costs less. The two do not exclude each other: the Miniserver also handles KNX, DALI, Modbus and 1-Wire devices, so an existing KNX system can be extended with Loxone control.
The system works locally by design and the data is not stored in an external cloud. Remote access runs over an encrypted connection, with permissions managed per user. On installation we hand over secure default settings and we help with software updates as well.
Most of the saving comes from presence-based heating and cooling control, automatic shading and solar energy management. The exact figure differs from household to household, but the consumption metering in the system shows you where and how much you save.
A retrofit based on Air typically takes a few days. In a new build the wiring follows the pace of the construction, and the programming and training are the last step before handover. We give you a specific schedule at the survey.
Yes, Loxone is modular and can be extended with new rooms or functions at any time. We also take on the programming, extension and fault finding of systems installed by others, so you are not tied to a single company.
The system needs no day-to-day maintenance. Software updates bring new functions and security fixes; our maintenance service helps with installing them and with periodic inspections.
As early as possible, ideally before the electrical design. The wiring plan decides what can be controlled later and at what cost: Tree wiring planned in advance costs a fraction of a later conversion. We are happy to talk to your designer and your electrician directly.
The essentials are Tree cable running to the positions of the switches and sensors, and separately controllable circuits running to the distribution board for the blinds and the loads. We provide a wiring diagram for this that any electrician can follow. In a properly prepared house the system can be extended freely later on.
For a home, where comfort, a ready-made app and quick configuration matter, Loxone is the obvious choice. For an industrial setting, bespoke process control or large buildings, the freely programmable WAGO PLC is the right fit. The two can also be combined; we write about the details on the WAGO automation page.
Get to know us and leave the automation to professionals!

With years of experience, expertise and enthusiasm we work to make the homes and buildings of our clients more comfortable, more energy-efficient and more intelligent. As Loxone specialists we take on maintenance, extensions, fault finding and complete installations alike, whether it is a family house, a holiday home or a commercial unit.

Why choose us?
  • Fast and flexible call-outs
  • Experience with many kinds of heating, lighting and security systems
  • Dependable workmanship, transparent prices
  • A free consultation to get started
Fill in the form and we will be in touch shortly!

Request a call back today!









#
